Sketch

Draws an image from a JavaScript sketch you write in the node, with loops, arrays and recursion and a p5.js-style API (rect, circle, line, beginShape, push/pop, translate, rotate, text). A mistake shows its line number and the last working picture stays up. Drop an .svg on the canvas to animate it by id.

What it does

Sketch is a source node: it makes a picture from nothing, so it sits at the start of a visual chain. It has no input and gives picture out, so it starts a chain.

Try it

Write one param("size", 50, 5, 200) call and wire an LFO into the knob it creates.

LFO Sketch (size)Output

Inputs and outputs

Inputs

None. It starts a chain.

Outputs

picture out

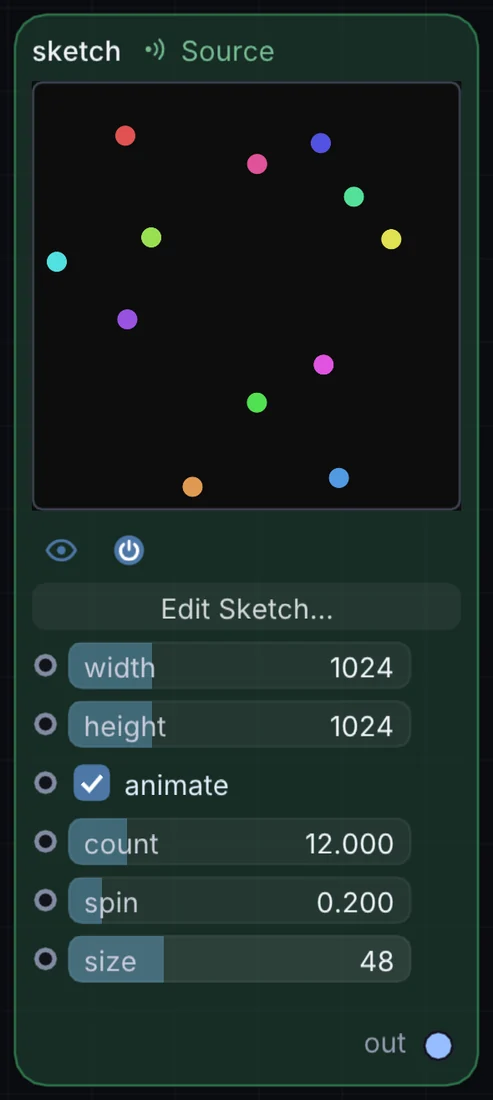

Controls

Every control with a range can be driven by a modulator, a note, an audio level or a sketch.

Control	Range or options	Default
width	16 to 4096	1024
height	16 to 4096	1024
animate	on or off	on

Example patch

This patch wires Sketch to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.

infinite-patch 1
rev 2
# Sketch: a starting patch for the Sketch node
node 1 Source Sketch
  id node
  pos 520 300
end
node 2 Utility Output
  id out
  pos 1080 300
end
cable out 0 node
