Notes node
Arpeggiator
Takes held notes and breaks them into a rhythmic, tempo-locked pattern — Up, Down, Up-Down, Random, As-Played, and a dozen more traversal modes — with 1 to 4 octaves of range.
What it does
Arpeggiator is a note node: it makes, filters or changes notes before a synth plays them. It takes notes in and gives notes out.
Try it
Hold a chord from Chorder and let the Arpeggiator turn it into a driving pattern.
ChorderArpeggiator (Up-Down)Wavetable Synth
Inputs and outputs
Inputs
- notes notes
Outputs
- notes out

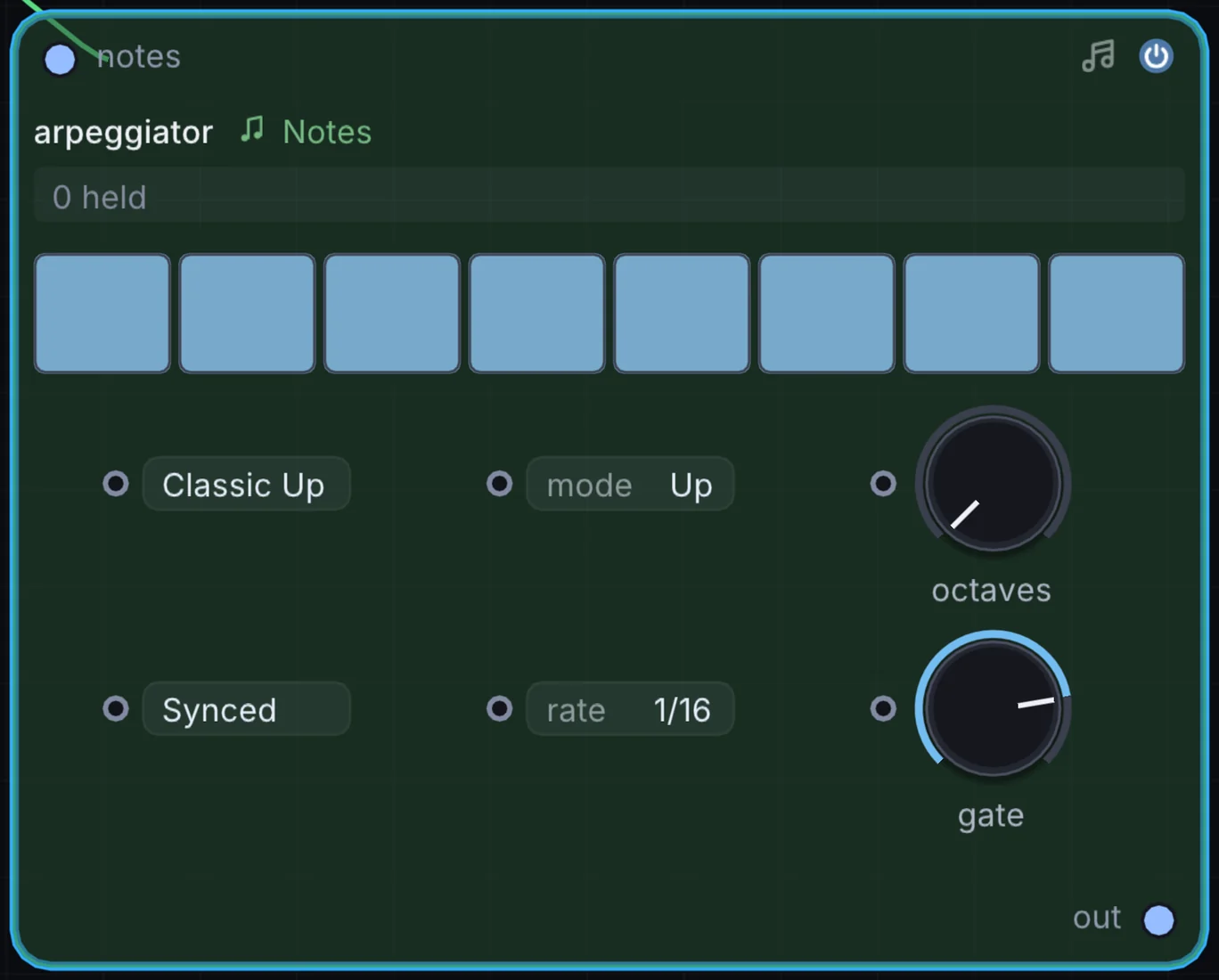

Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mode | Up, Down, Up/Down, Down/Up, Random, As Played, Repeat x2, Repeat x4 … | 0 |
| octaves | 1 to 4 | 1 |
| sync | Synced, Free | 0 |
| rate | 0.02 to 2 | 0.200000003 |
| gate | 1 to 100 | 80 |
Example patch
This patch wires Arpeggiator to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Arpeggiator: a starting patch for the Arpeggiator node
node 1 Notes Arpeggiator
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Synths Analog
id voice
pos 1080 300
end
node 4 Utility Audio Out
id speakers
pos 1640 300
end
note node 0 in0
note voice 0 node
aud speakers 0 voice
