Notes node

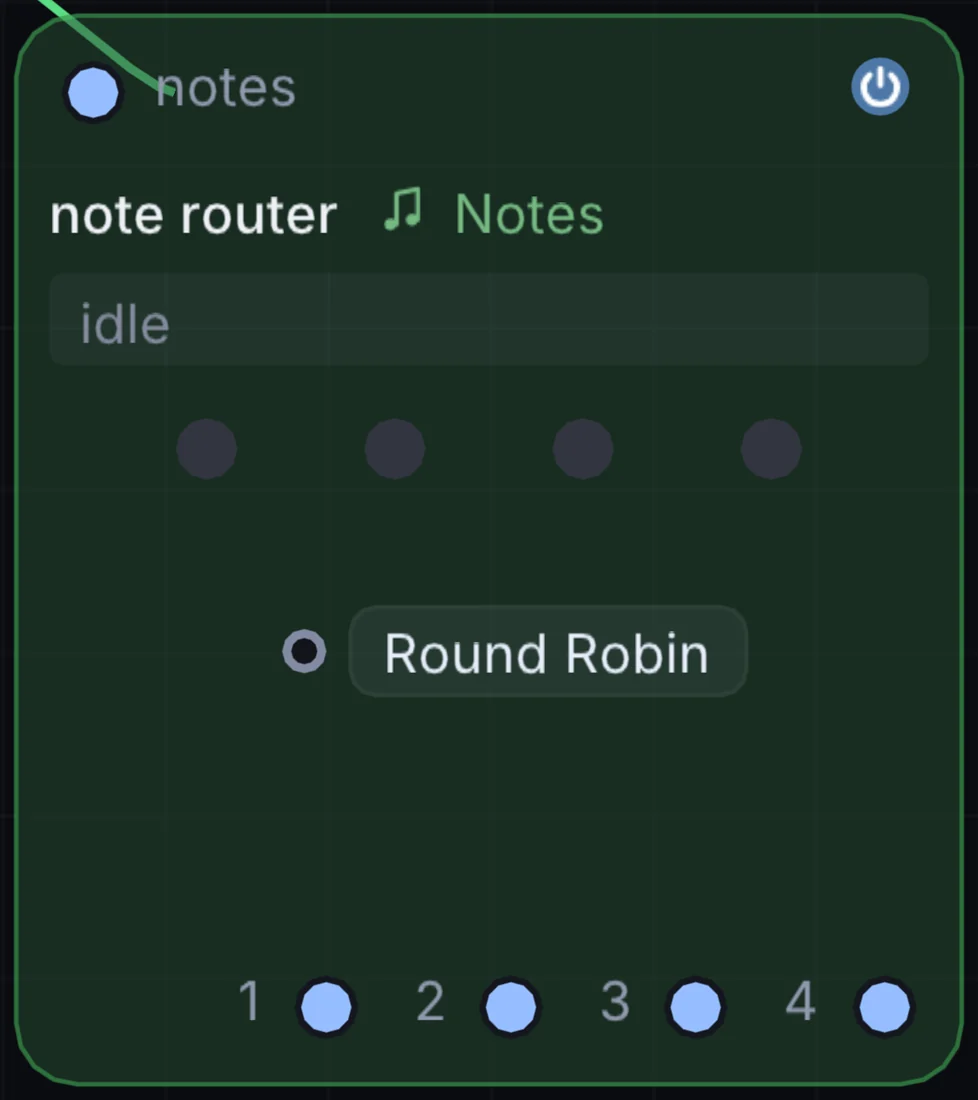

Note Router
The system's note fan-out node: one input split across four separate outputs, chosen by Round Robin, Random, Probability, or Chain mode. A note's matching note-off always replays to the same output it was sent to.
What it does
Note Router is a note node: it makes, filters or changes notes before a synth plays them. It takes notes in and gives notes out.
Try it
Use Round Robin mode to alternate incoming notes between four different synths for a call-and-response texture.
MIDI NotesNote Router(four Wavetable instances)
Inputs and outputs
Inputs
- notes notes
Outputs
- notes 1
- notes 2
- notes 3
- notes 4
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mode | Round Robin, Random, Probability, Chain | 0 |
Example patch
This patch wires Note Router to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Note Router: a starting patch for the Note Router node
node 1 Notes Note Router
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Synths Analog
id voice
pos 1080 300
end
node 4 Utility Audio Out
id speakers
pos 1640 300
end
note node 0 in0
note voice 0 node
aud speakers 0 voice
