Audio effects node

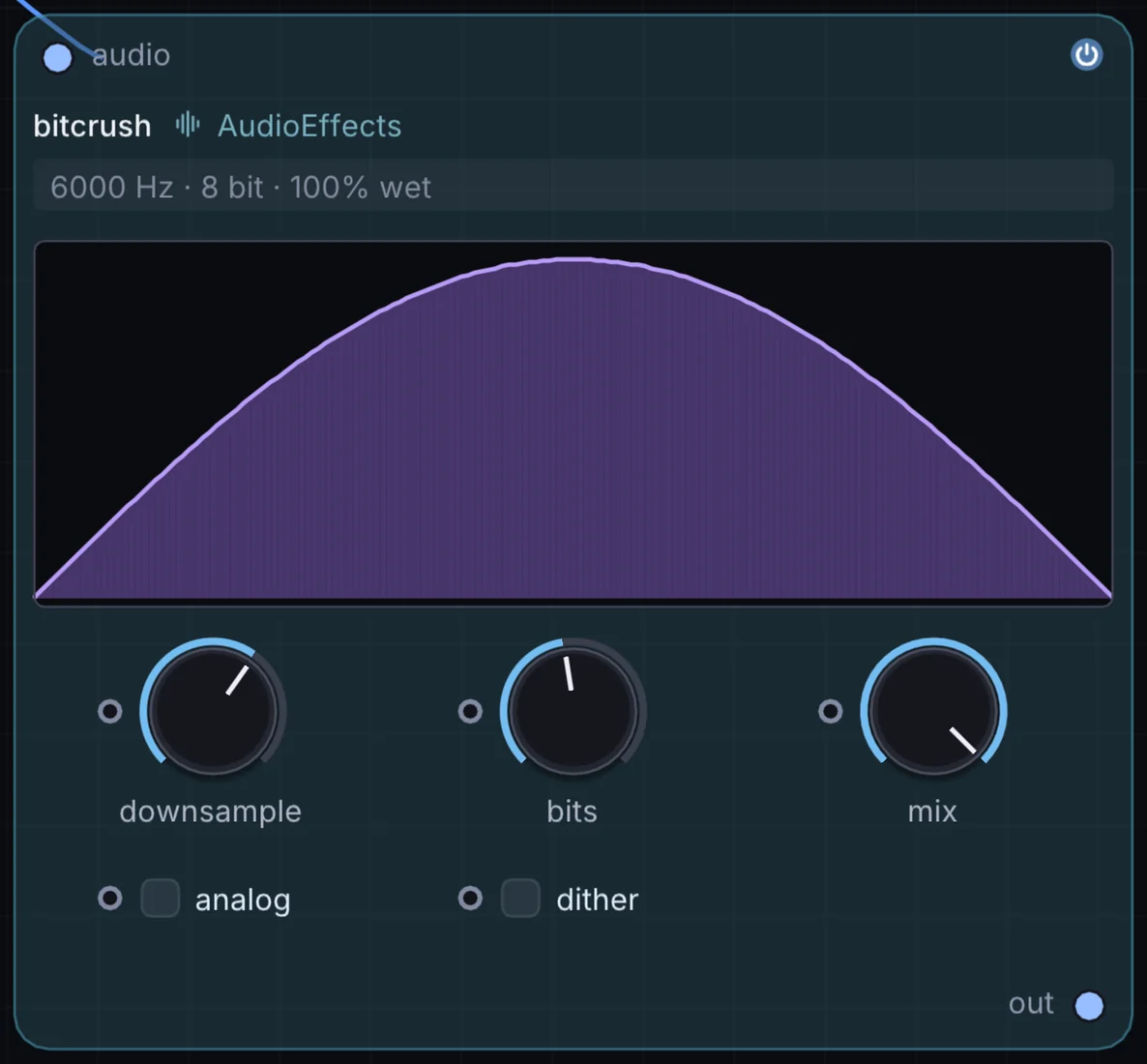

Bitcrush
A separate lo-fi crusher: independent sample-rate (down to 200 Hz) and bit-depth (down to 1 bit) reduction for anything from a subtle vintage-sampler grit to full digital destruction.
What it does
Bitcrush is an audio effect: it changes the sound that flows through it. It takes audio in and gives audio out.
Try it
Crush a clean synth line down to 8 bits for an instant retro-game feel.
Inputs and outputs
Inputs
- audio audio
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mix | 0 to 1 | 1 |
| downsample | 200 to 44100 | 6000 |
| bits | 1 to 16 | 8 |
Example patch
This patch wires Bitcrush to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Bitcrush: a starting patch for the Bitcrush node
node 1 AudioEffects Bitcrush
id node
pos 520 300
end
node 2 Synths Oscillator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
aud node 0 in0
aud speakers 0 node
