Audio effects node

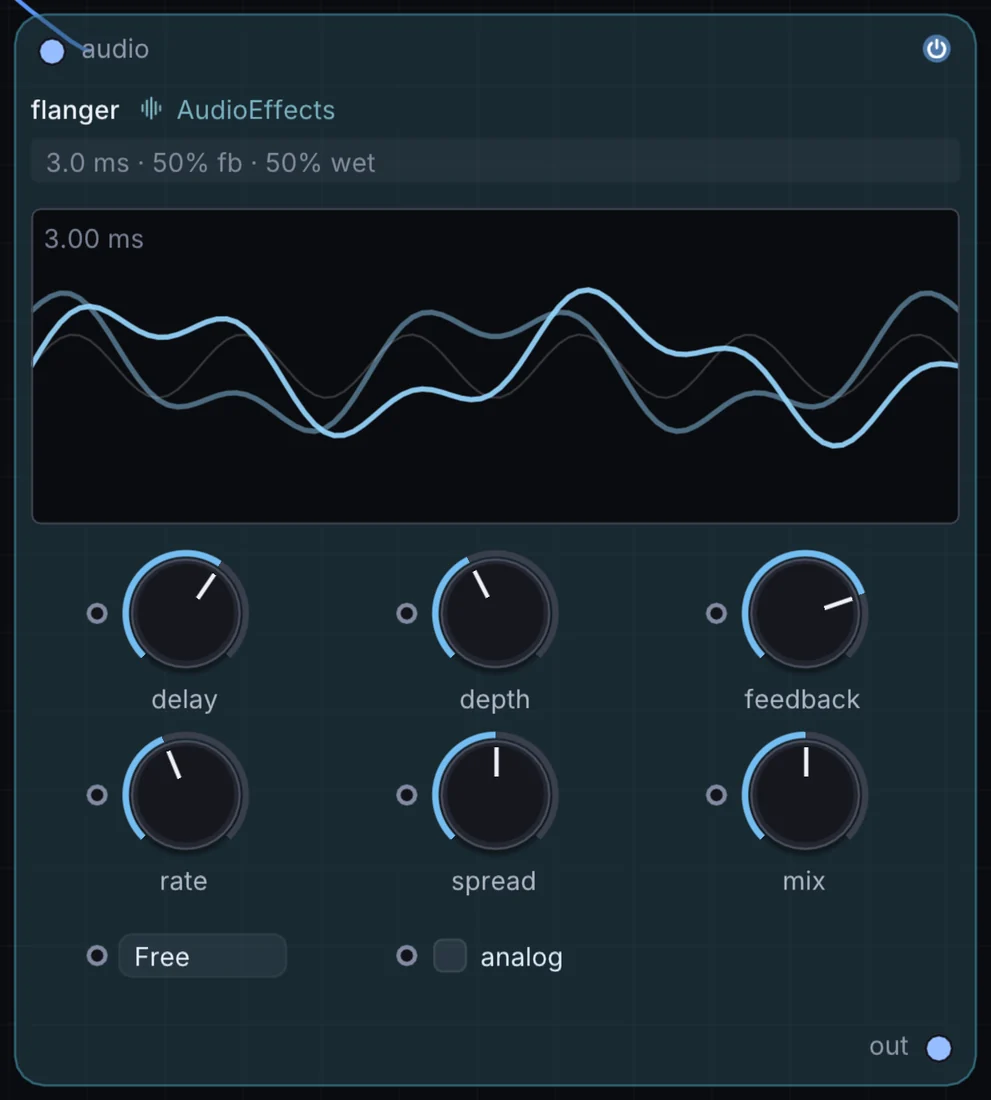

Flanger
Creates a sweeping, jet-plane whoosh by mixing a short modulating delay with Feedback back into the signal.
What it does
Flanger is an audio effect: it changes the sound that flows through it. It takes audio in and gives audio out.
Inputs and outputs
Inputs
- audio audio
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mix | 0 to 1 | 0.5 |
| delay | 0.2 to 15 | 3 |
| depth | 0 to 10 | 4 |
| feedback | -0.95 to 0.95 | 0.5 |
| rate | 0.02 to 5 | 0.200000003 |
| spread | 0 to 1 | 0.5 |
Example patch
This patch wires Flanger to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Flanger: a starting patch for the Flanger node
node 1 AudioEffects Flanger
id node
pos 520 300
end
node 2 Synths Oscillator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
aud node 0 in0
aud speakers 0 node
