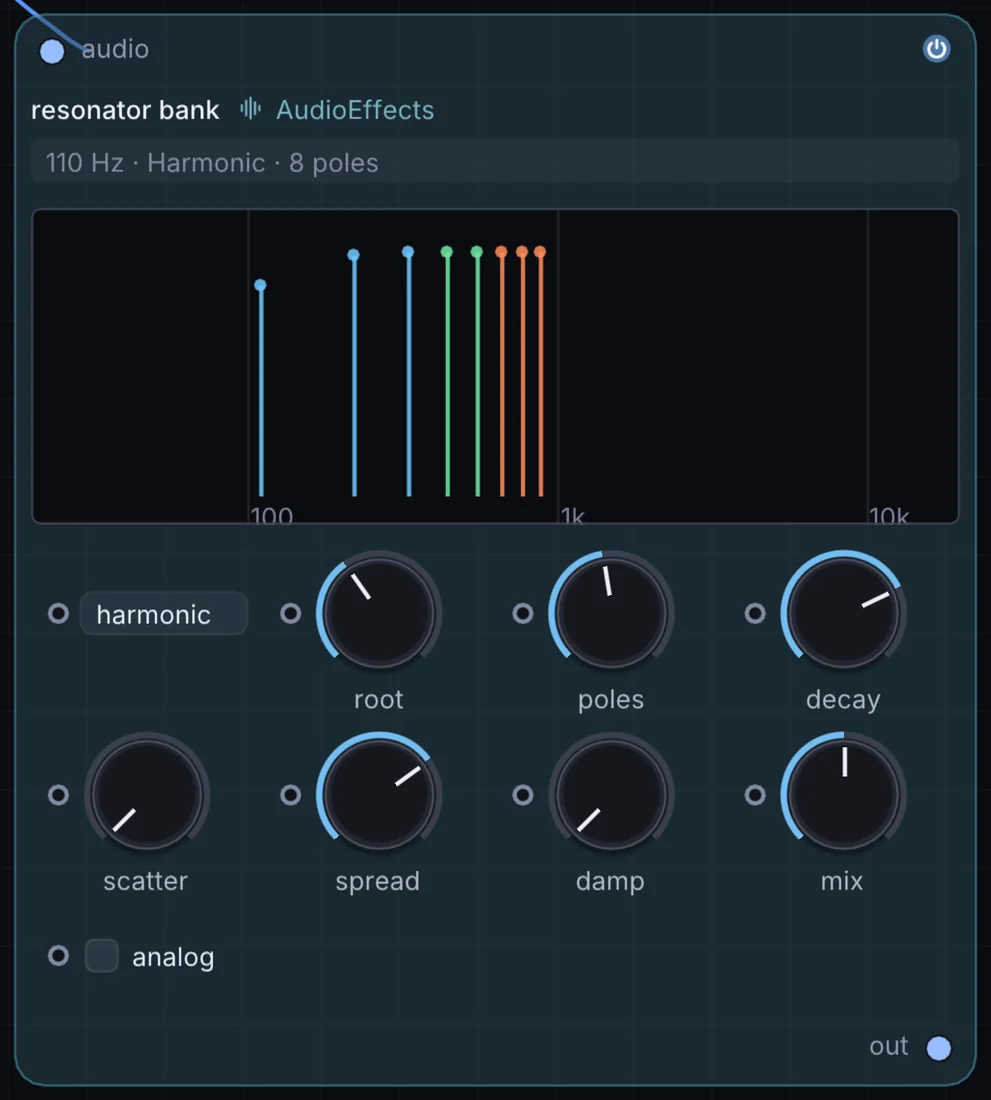

Audio effects node
Resonator Bank
Up to 16 band-pass resonators running side by side, forming a tuned bank of ringing filters, including a metallic tuning mode. Feed it noise or drums and it rings like a struck bell or plate.
What it does
Resonator Bank is an audio effect: it changes the sound that flows through it. It takes audio in and gives audio out.
Try it
Push a drum loop through it in metallic mode for a gamelan-style shimmer.
Audio FileResonator BankAudio Out
Inputs and outputs
Inputs
- audio audio
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mix | 0 to 1 | 0.5 |
| root | 20 to 2000 | 110 |
| poles | 1 to 16 | 8 |
| decay | 0.05 to 10 | 2.5 |
| scatter | 0 to 1 | 0 |
| spread | 0 to 1 | 0.699999988 |
| damp | 0 to 1 | 0 |
Example patch
This patch wires Resonator Bank to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Resonator Bank: a starting patch for the Resonator Bank node
node 1 AudioEffects Resonator Bank
id node
pos 520 300
end
node 2 Synths Oscillator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
aud node 0 in0
aud speakers 0 node
