Compositing node
Color Adjustments
Your all-in-one grading desk: brightness, contrast, levels, color balance, hue, saturation, vibrance, and a black-and-white switch — the same toolkit colorists use, chained together in one node.
What it does
Color Adjustments is a compositing node: it layers, masks and routes pictures. It takes picture in and gives picture out.
Try it
Warm the shadows and cool the highlights for an instant "teal and orange" cinematic grade.
Camera InColor AdjustmentsLUT
Inputs and outputs
Inputs
- picture input
Outputs
- picture out

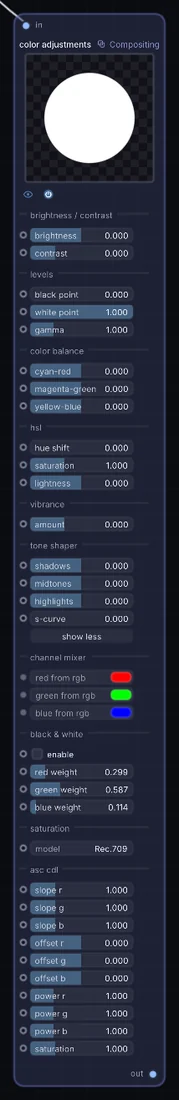

Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| brightness | -1 to 1 | 0 |
| contrast | -1 to 3 | 0 |
| black point | 0 to 1 | 0 |
| white point | 0 to 1 | 1 |
| gamma | 0.1 to 4 | 1 |
| cyan-red | -0.5 to 0.5 | 0 |
| magenta-green | -0.5 to 0.5 | 0 |
| yellow-blue | -0.5 to 0.5 | 0 |
| hue shift | 0 to 1 | 0 |
| saturation | 0 to 3 | 1 |
| lightness | -1 to 1 | 0 |
| amount | -1 to 2 | 0 |
| shadows | -0.5 to 0.5 | 0 |
| midtones | -0.5 to 0.5 | 0 |
| highlights | -0.5 to 0.5 | 0 |
| s-curve | 0 to 1 | 0 |
| red weight | 0 to 2 | 0.298999995 |
| green weight | 0 to 2 | 0.587000012 |
| blue weight | 0 to 2 | 0.114 |
| slope r | 0 to 4 | 1 |
| slope g | 0 to 4 | 1 |
| slope b | 0 to 4 | 1 |
| offset r | -1 to 1 | 0 |
| offset g | -1 to 1 | 0 |
Example patch
This patch wires Color Adjustments to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Color Adjustments: a starting patch for the Color Adjustments node
node 1 Compositing color adjustments
id node
pos 520 300
end
node 2 Source Ramp
id in0
pos 0 300
end
node 3 Utility Output
id out
pos 1080 300
end
cable node 0 in0
cable out 0 node
