Macros node
Macro Radio Selector

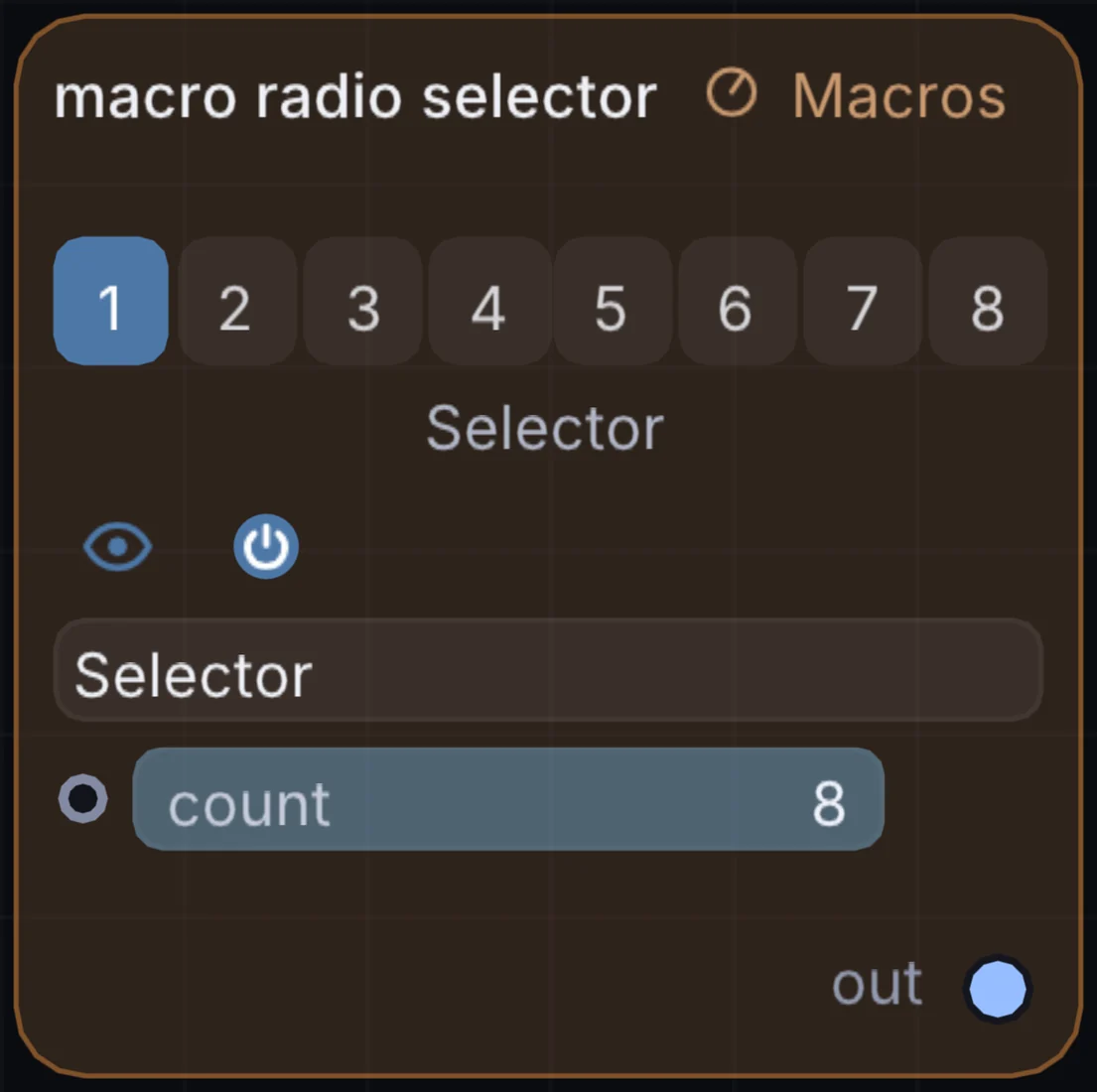

A discrete multi-choice selector — pick one of a set number of options and it outputs that choice's position, evenly spaced across 0 to 1.
What it does
Macro Radio Selector is a macro control: a knob, slider or pad you play by hand and wire to many things. It has no input and gives control signal out, so it starts a chain.
Try it
Wire four choices into a Switcher's manual slot for one-click scene selection.
Macro Radio SelectorSwitcher (Manual Slot)
Inputs and outputs
Inputs
- None. It starts a chain.
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| count | 2 to 8 | 8 |
Example patch
This patch wires Macro Radio Selector to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Macro Radio Selector: a starting patch for the Macro Radio Selector node
node 1 Macros Macro Radio Selector
id node
pos 520 300
end
node 2 Source Shape
id shape
pos 1080 300
end
node 3 Utility Output
id out
pos 1640 300
end
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
