Macros node

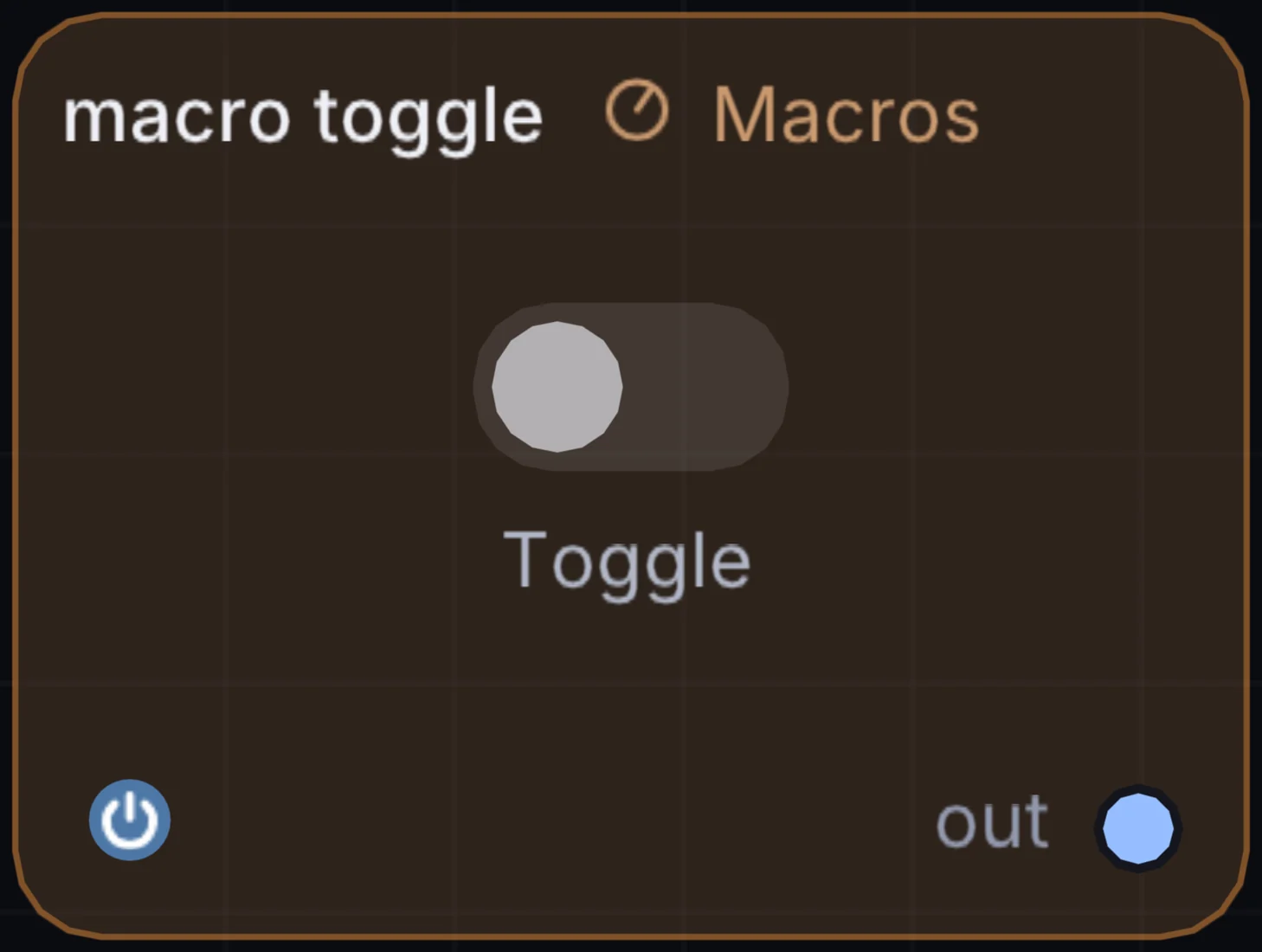

Macro Toggle
A latching on/off switch, plain and simple — click once to flip it on, click again to flip it off.
What it does
Macro Toggle is a macro control: a knob, slider or pad you play by hand and wire to many things. It has no input and gives control signal out, so it starts a chain.
Try it
Gate a whole effects chain's Mix on and off with one click during a performance.
Macro ToggleBlend Audio (Blend)
Inputs and outputs
Inputs
- None. It starts a chain.
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| state | on or off | off |
Example patch
This patch wires Macro Toggle to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Macro Toggle: a starting patch for the Macro Toggle node
node 1 Macros Macro Toggle
id node
pos 520 300
end
node 2 Source Shape
id shape
pos 1080 300
end
node 3 Utility Output
id out
pos 1640 300
end
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
