Macros node

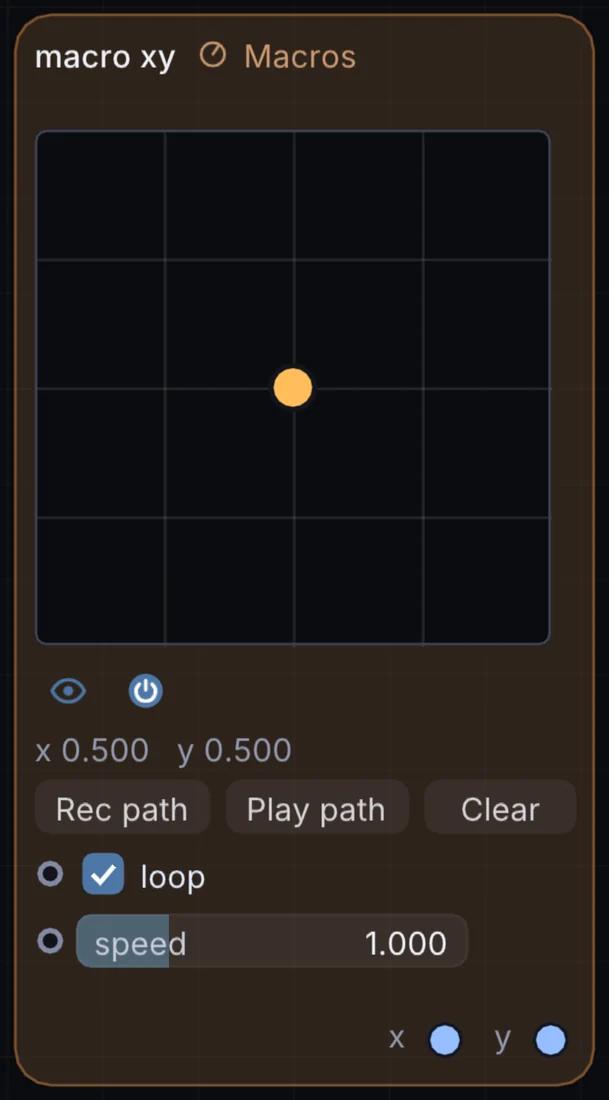

Macro XY
A 2D performance pad — grab it with a mouse or trackpad to fling two parameters around at once, live. It can also record a path you drag out and loop it back for hands-free, repeating motion.
What it does
Macro XY is a macro control: a knob, slider or pad you play by hand and wire to many things. It has no input and gives control signal out, so it starts a chain.
Try it
Map X to a filter cutoff and Y to Glitch amount, then perform both with one finger.
Macro XYFilter Cutoff (X) & Glitch Amount (Y)
Inputs and outputs
Inputs
- None. It starts a chain.
Outputs
- control signal x
- control signal y
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| loop | on or off | on |
| speed | 0.05 to 4 | 1 |
Example patch
This patch wires Macro XY to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Macro XY: a starting patch for the Macro XY node
node 1 Macros Macro XY
id node
pos 520 300
end
node 2 Source Shape
id shape
pos 1080 300
end
node 3 Utility Output
id out
pos 1640 300
end
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
