Compositing node

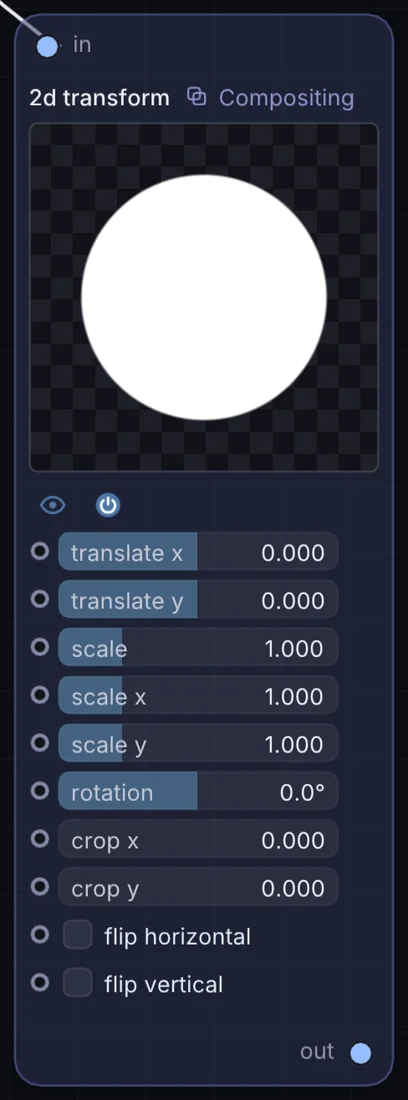

Transform
Moves, scales, and rotates the whole image using Translate, Scale, and Rotation controls, leaving anything pushed outside the frame transparent.
What it does
Transform is a compositing node: it layers, masks and routes pictures. It takes picture in and gives picture out.
Inputs and outputs
Inputs
- picture input
Outputs
- picture out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| translate x | -1 to 1 | 0 |
| translate y | -1 to 1 | 0 |
| scale | 0.1 to 4 | 1 |
| scale x | 0.1 to 4 | 1 |
| scale y | 0.1 to 4 | 1 |
| rotation | -180 to 180 | 0 |
| crop x | 0 to 0.95 | 0 |
| crop y | 0 to 0.95 | 0 |
Example patch
This patch wires Transform to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Transform: a starting patch for the Transform node
node 1 Compositing transform
id node
pos 520 300
end
node 2 Source Ramp
id in0
pos 0 300
end
node 3 Utility Output
id out
pos 1080 300
end
cable node 0 in0
cable out 0 node
