Notes node
Field Notes
A note node whose body is a Field script. It runs per sample against the transport beat, and note(pitch, vel, len) inside an if sends a note out. tick(div) fires on each beat division, deg(d) is a scale degree under Root and Scale, and rand() is 0 to 1.
What it does

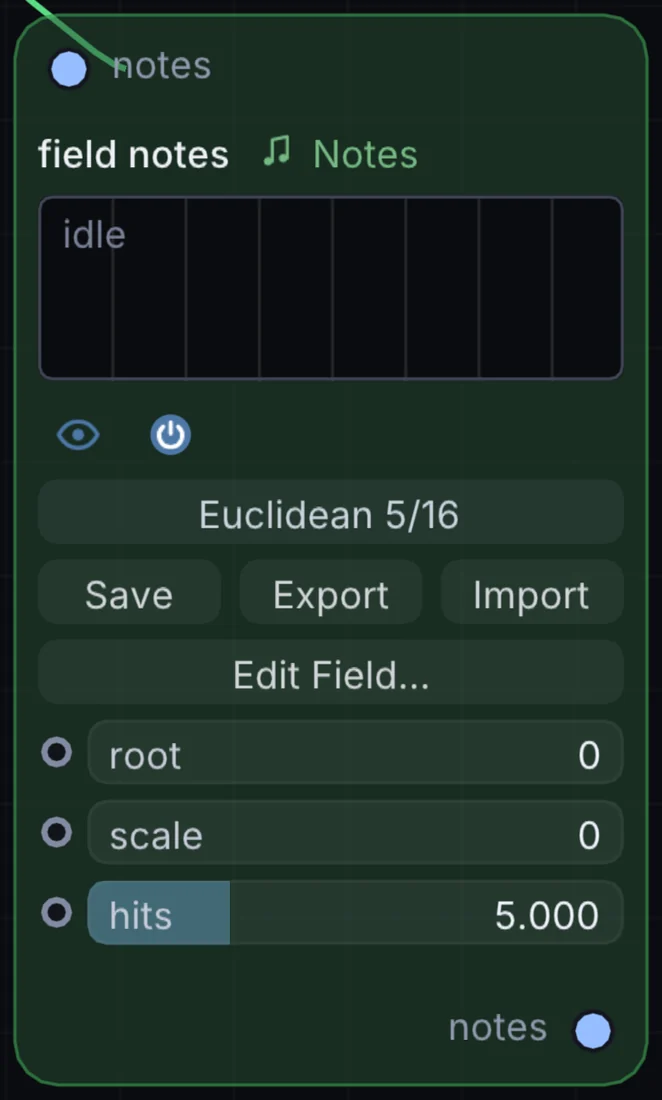

Field Notes is a note node: it makes, filters or changes notes before a synth plays them. It takes notes in and gives notes out.
Try it
Fire a random scale degree on every eighth note and send it to a synth.
Inputs and outputs
Inputs
- notes notes
Outputs
- notes notes
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| root | 0 to 11 | 0 |
| scale | 0 to 13 | 0 |
| hits | 1 to 16 | 5 |
Example patch
This patch wires Field Notes to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Field Notes: a starting patch for the Field Notes node
node 1 Notes Field Notes
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Synths Analog
id voice
pos 1080 300
end
node 4 Utility Audio Out
id speakers
pos 1640 300
end
note node 0 in0
note voice 0 node
aud speakers 0 voice
