Wavetable

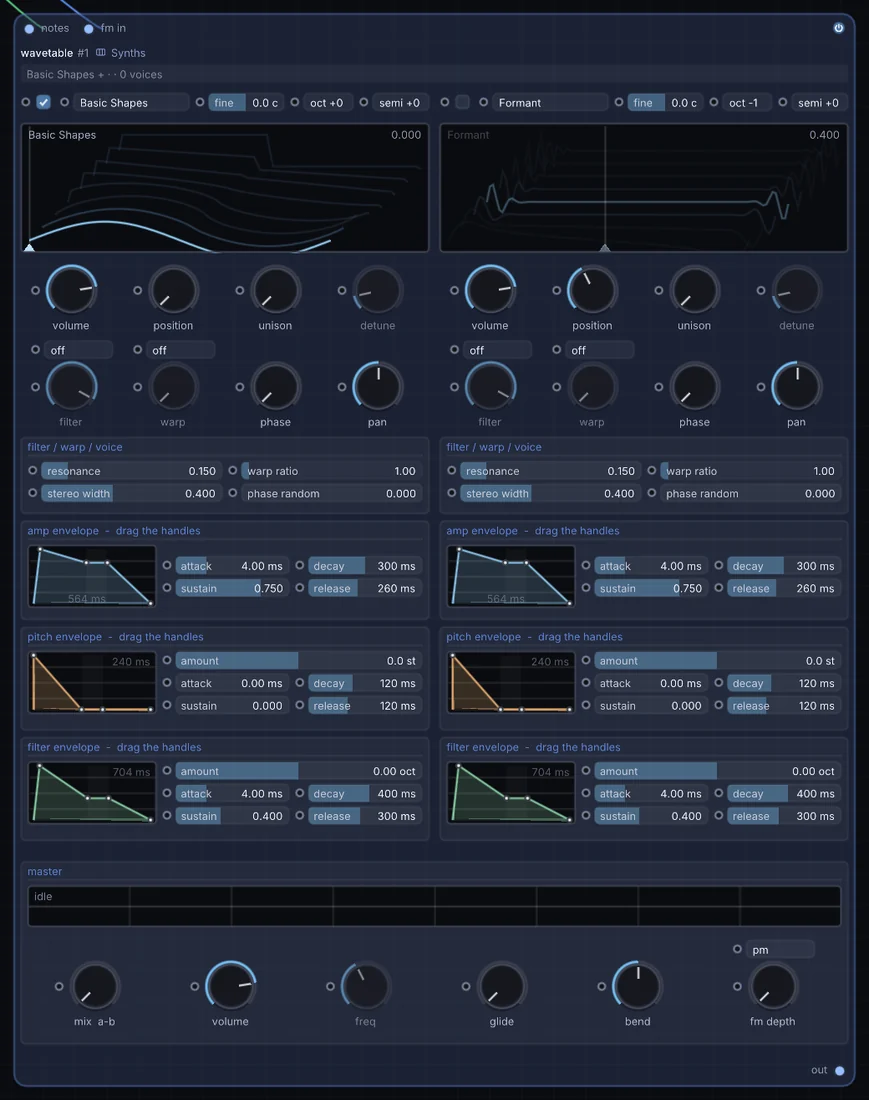

Wavetable is a synth: it turns notes into sound. It takes notes and audio in and gives audio out. Its controls include mix a-b, volume, freq, glide.
What it does
Wavetable is a synth: it turns notes into sound. It takes notes and audio in and gives audio out.
Inputs and outputs
Inputs
- notes notes
- audio fm in
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mix a-b | 0 to 1 | 0 |
| volume | 0 to 1 | 0.800000012 |
| freq | 20 to 8000 | 220 |
| glide | 0 to 2 | 0 |
| bend | -2 to 2 | 0 |
| fm depth | 0 to 2 | 0 |
| wtFmMode | pm, fm | 0 |
| a.on | on or off | on |
| wtTable | Basic Shapes, Harmonics, Odd Only, Formant, Pulse, Vocal, Bell, Saturate … | 0 |
| position | 0 to 1 | 0 |
| volume | 0 to 1 | 0.800000012 |
| pan | -1 to 1 | 0 |
| unison | 1 to 8 | 1 |
| detune | 0 to 100 | 12 |
| stereo width | 0 to 1 | 0.400000006 |
| fine | -50 to 50 | 0 |
| phase | 0 to 1 | 0 |
| phase random | 0 to 1 | 0 |
| wtWarp | off, fm (b), am (b), rm (b), pd (b), hard sync, bend +, bend - … | 0 |
| warp | 0 to 1 | 0 |
| warp ratio | 0.25 to 16 | 1 |
| wtFilter | off, lp 12, lp 24, lp 36, hp 12, hp 24, hp 36, bp 12 … | 0 |
| filter | 20 to 18000 | 12000 |
| resonance | 0 to 1 | 0.150000006 |
Example patch
This patch wires Wavetable to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Wavetable: a starting patch for the Wavetable node
node 1 Synths Wavetable
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 220
end
node 3 Synths Oscillator
id in1
pos 0 510
end
node 4 Utility Audio Out
id speakers
pos 1080 300
end
note node 0 in0
aud node 1 in1
aud speakers 0 node
