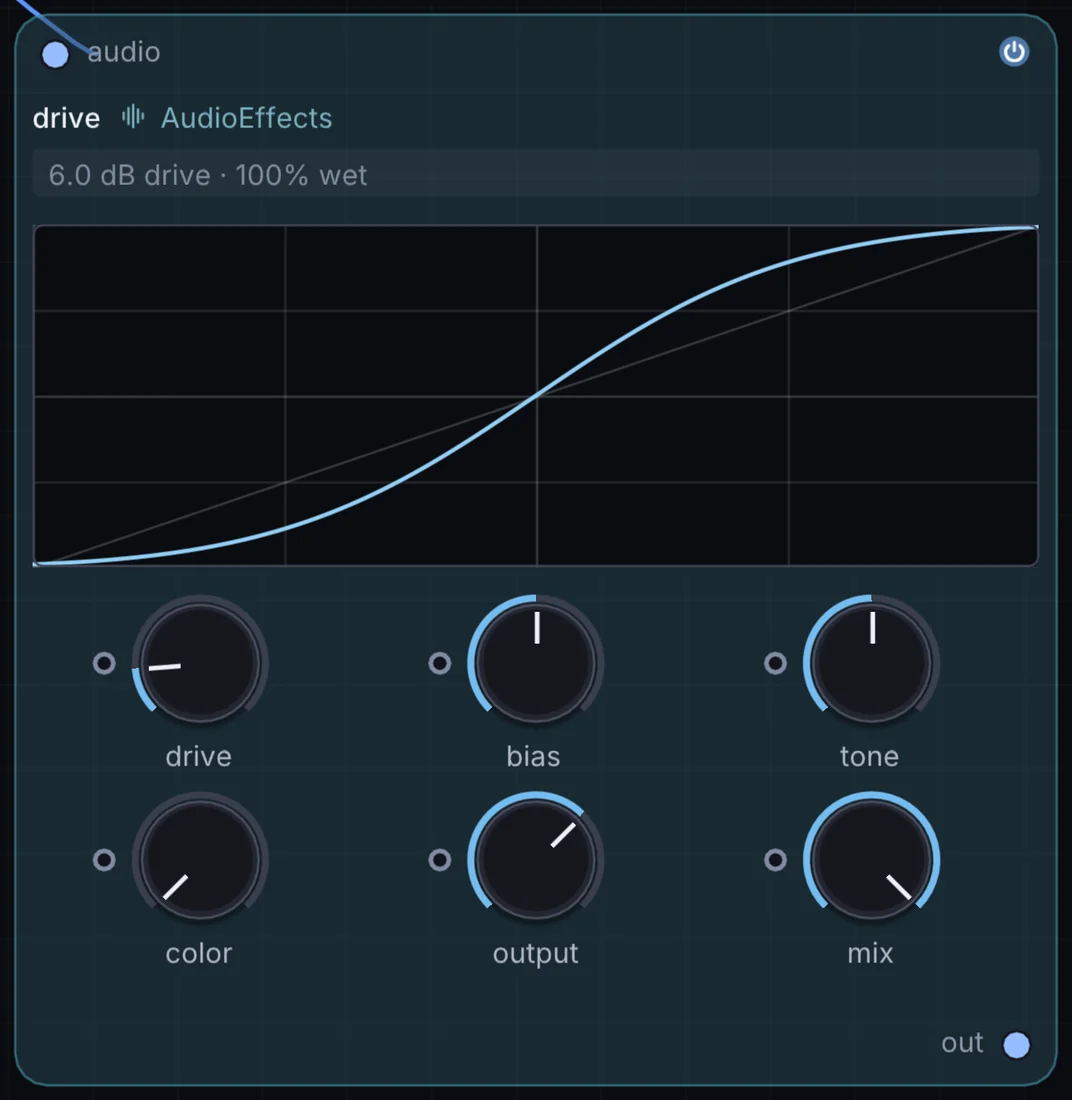

Audio effects node
Drive
Warm analog-style tube-and-transistor saturation with drive, bias, tone, and color controls — a gentle glow at low settings, real grit when you push it.
What it does
Drive is an audio effect: it changes the sound that flows through it. It takes audio in and gives audio out.
Try it
Hit a drum mix with a few dB of Drive for extra punch and glue.
Inputs and outputs
Inputs
- audio audio
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mix | 0 to 1 | 1 |
| drive | 0 to 40 | 6 |
| bias | -1 to 1 | 0 |
| tone | -1 to 1 | 0 |
| color | 0 to 1 | 0 |
| output | -24 to 12 | 0 |
Example patch
This patch wires Drive to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Drive: a starting patch for the Drive node
node 1 AudioEffects Drive
id node
pos 520 300
end
node 2 Synths Oscillator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
aud node 0 in0
aud speakers 0 node
