Synths node

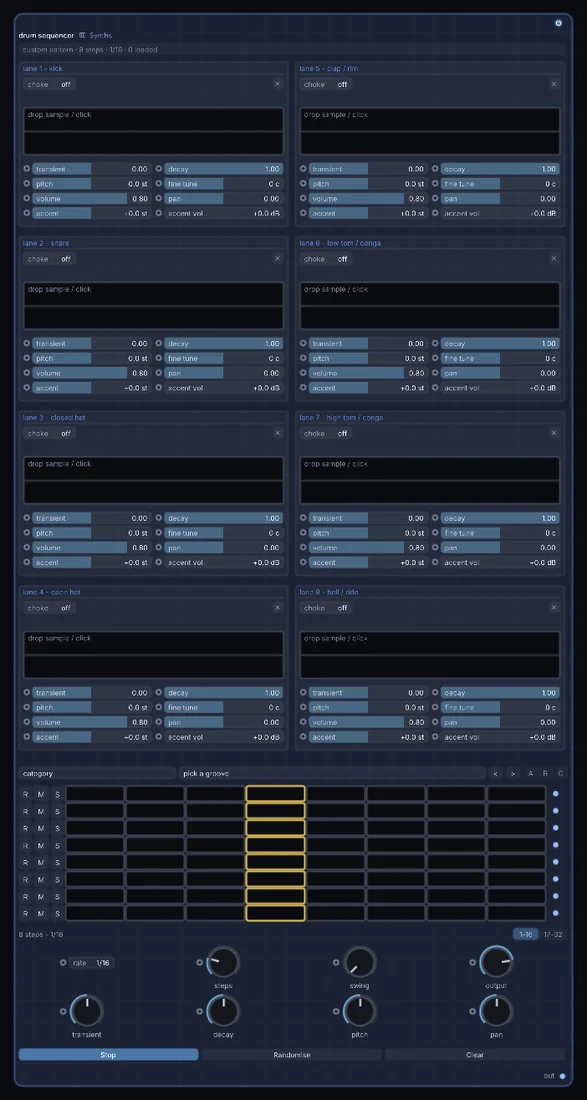

Drum Sequencer
An 8-track, 8-step sequencer for your own samples, complete with swing groove, mutes, and solos — build a full beat without leaving the canvas, and tap any lane's trigger to drive visuals too.
What it does
Drum Sequencer is a synth: it turns notes into sound. It has no input and gives audio out, so it starts a chain.
Try it
Send the kick lane's trigger into a Glitch node so the picture stutters with the beat.
Inputs and outputs
Inputs
- None. It starts a chain.
Outputs
- audio out
- audio 1
- audio 2
- audio 3
- audio 4
- audio 5
- audio 6
- audio 7
- audio 8
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| volume | 0 to 1 | 0.800000012 |
| pan | -1 to 1 | 0 |
| pitch | -24 to 24 | 0 |
| fine tune | -50 to 50 | 0 |
| decay | 0 to 1 | 1 |
| transient | -1 to 1 | 0 |
| lane 1 accent | -24 to 24 | 0 |
| lane 1 accent vol | 0 to 12 | 0 |
| volume | 0 to 1 | 0.800000012 |
| pan | -1 to 1 | 0 |
| pitch | -24 to 24 | 0 |
| fine tune | -50 to 50 | 0 |
| decay | 0 to 1 | 1 |
| transient | -1 to 1 | 0 |
| lane 2 accent | -24 to 24 | 0 |
| lane 2 accent vol | 0 to 12 | 0 |
| volume | 0 to 1 | 0.800000012 |
| pan | -1 to 1 | 0 |
| pitch | -24 to 24 | 0 |
| fine tune | -50 to 50 | 0 |
| decay | 0 to 1 | 1 |
| transient | -1 to 1 | 0 |
| lane 3 accent | -24 to 24 | 0 |
| lane 3 accent vol | 0 to 12 | 0 |
Example patch
This patch wires Drum Sequencer to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Drum Sequencer: a starting patch for the Drum Sequencer node
node 1 Synths Drum Sequencer
id node
pos 520 300
end
node 2 Utility Audio Out
id speakers
pos 1080 300
end
aud speakers 0 node
