Effects node

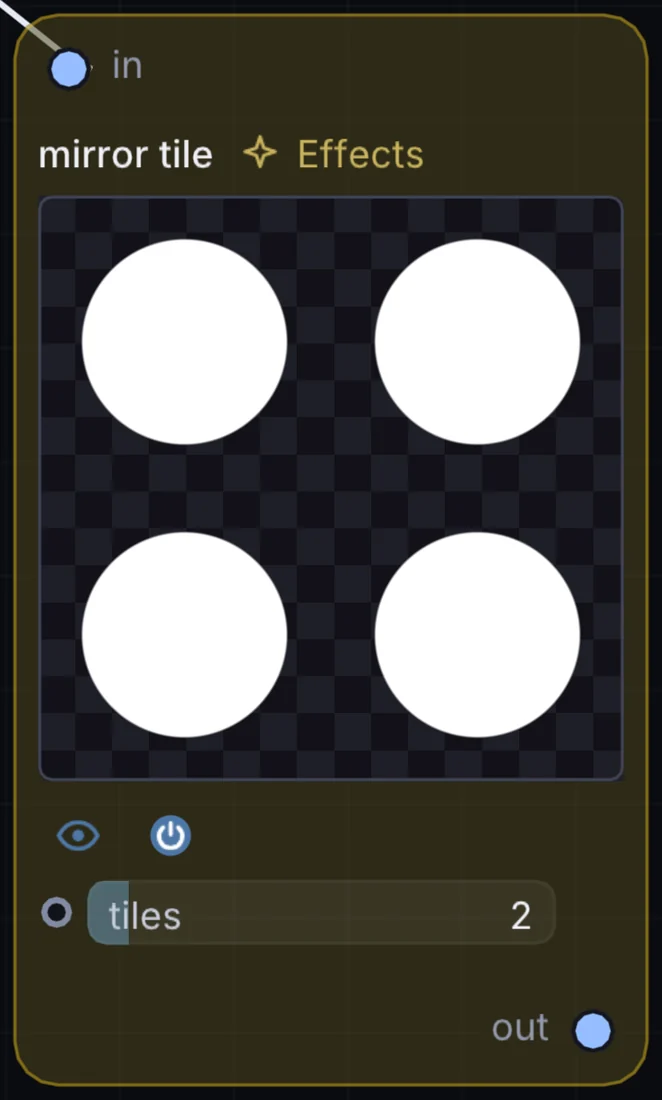

Mirror Tile
Tiles the image and flips every other tile so the edges meet seamlessly, unlike a plain repeat. Tiles sets how many repeats you get.
What it does
Mirror Tile is an image effect: it changes the picture that flows through it. It takes picture in and gives picture out.
Try it
Tile a Noise source to make a seamless texture for a 3D material.
Inputs and outputs
Inputs
- picture input
Outputs
- picture out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| tiles | 1 to 12 | 2 |
Example patch
This patch wires Mirror Tile to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Mirror Tile: a starting patch for the Mirror Tile node
node 1 Effects mirror tile
id node
pos 520 300
end
node 2 Source Ramp
id in0
pos 0 300
end
node 3 Utility Output
id out
pos 1080 300
end
cable node 0 in0
cable out 0 node
