Effects node

Displace

Pushes pixels sideways using either a second connected image as a displacement map or, with nothing plugged in, an animated wavy pattern.

Download the patch Read it in the Field Guide

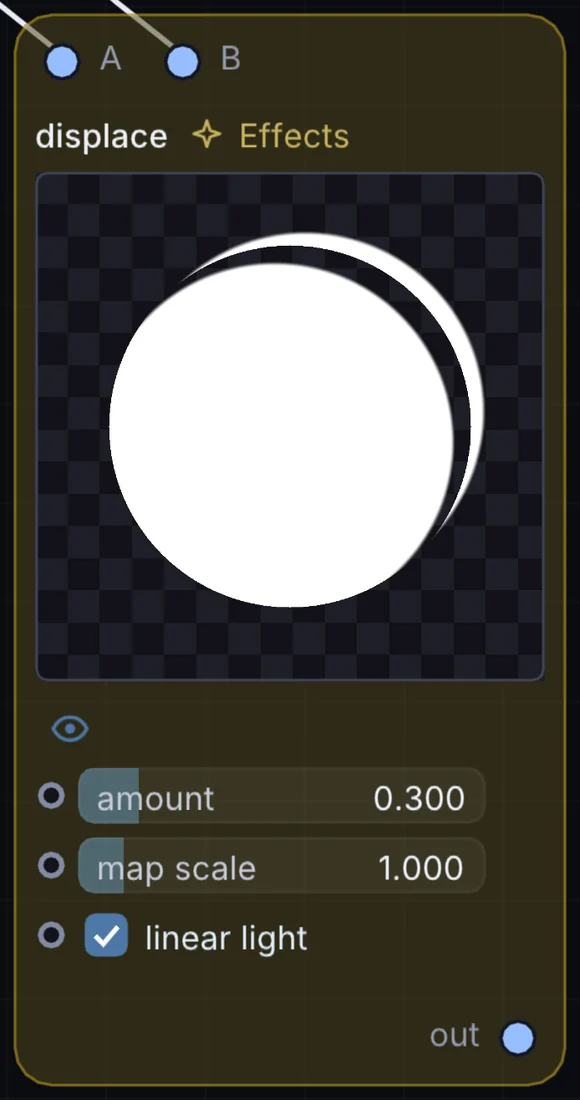

The Displace node in Infinite, showing its inputs, controls and outputs.

What it does

Displace is an image effect: it changes the picture that flows through it. It takes picture in and gives picture out.

Inputs and outputs

Inputs

picture input
picture input 2

Outputs

picture out

Controls

Every control with a range can be driven by a modulator, a note, an audio level or a sketch.

Control	Range or options	Default
amount	0 to 2	0.300000012
map scale	0.1 to 8	1

Example patch

This patch wires Displace to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.

infinite-patch 1
rev 2
# Displace: a starting patch for the Displace node
node 1 Effects displace
  id node
  pos 520 300
end
node 2 Source Ramp
  id in0
  pos 0 220
end
node 3 Source Ramp
  id in1
  pos 0 510
end
node 4 Utility Output
  id out
  pos 1080 300
end
cable node 0 in0
cable node 1 in1
cable out 0 node
