Notes node
Glide
Fills the gap between one played note and the next with a fast run of very short in-between notes, approximating a portamento slide since the note system has no continuous pitch to bend smoothly.
What it does
Glide is a note node: it makes, filters or changes notes before a synth plays them. It takes notes in and gives notes out.
Try it
Set the glide time to around 300–500ms on a bass line for a slippery, portamento-like slide between notes.
Inputs and outputs
Inputs
- notes notes
Outputs
- notes out

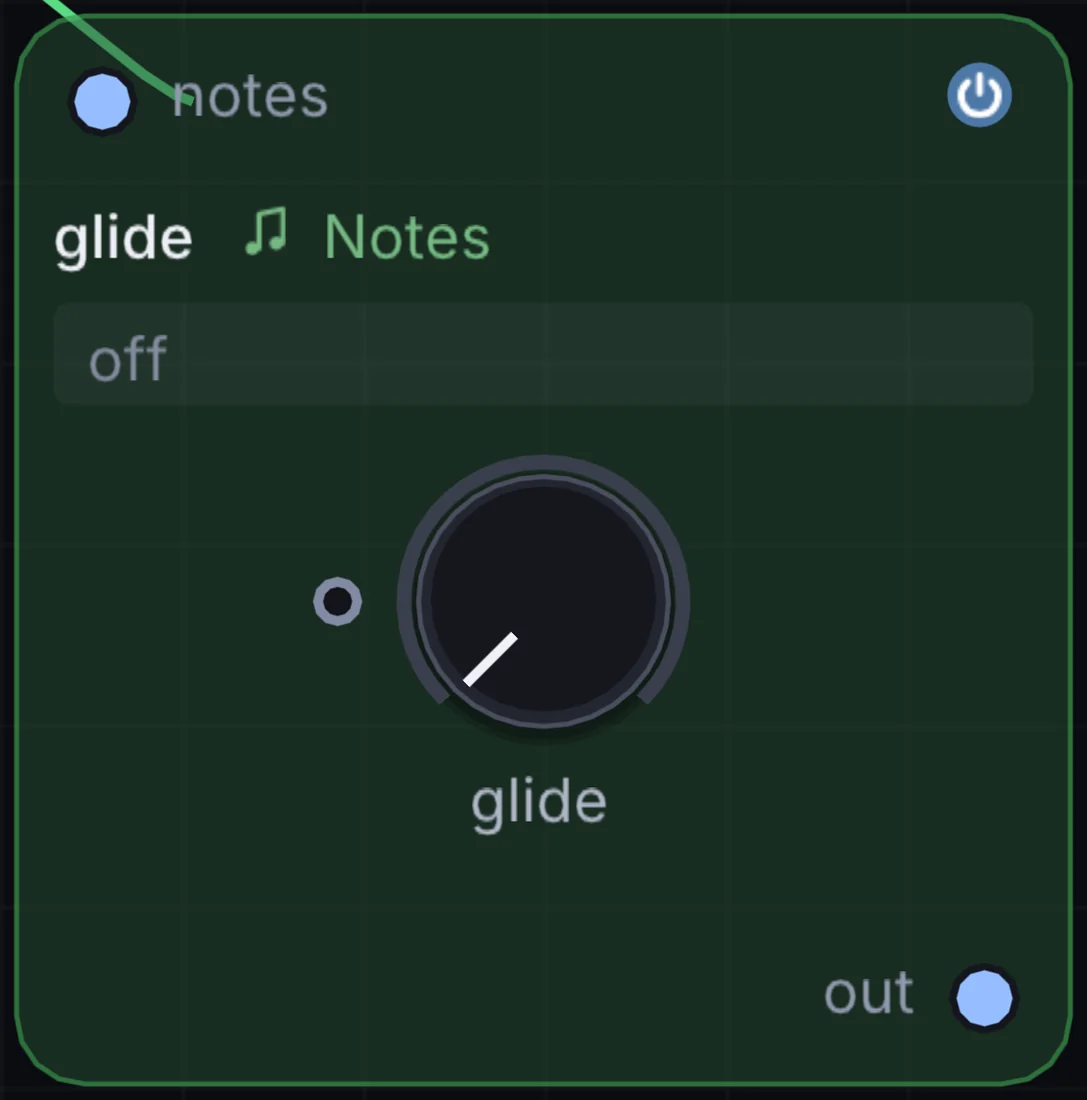

Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| glide | 0 to 2000 | 0 |
Example patch
This patch wires Glide to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Glide: a starting patch for the Glide node
node 1 Notes Glide
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Synths Analog
id voice
pos 1080 300
end
node 4 Utility Audio Out
id speakers
pos 1640 300
end
note node 0 in0
note voice 0 node
aud speakers 0 voice
