Notes node

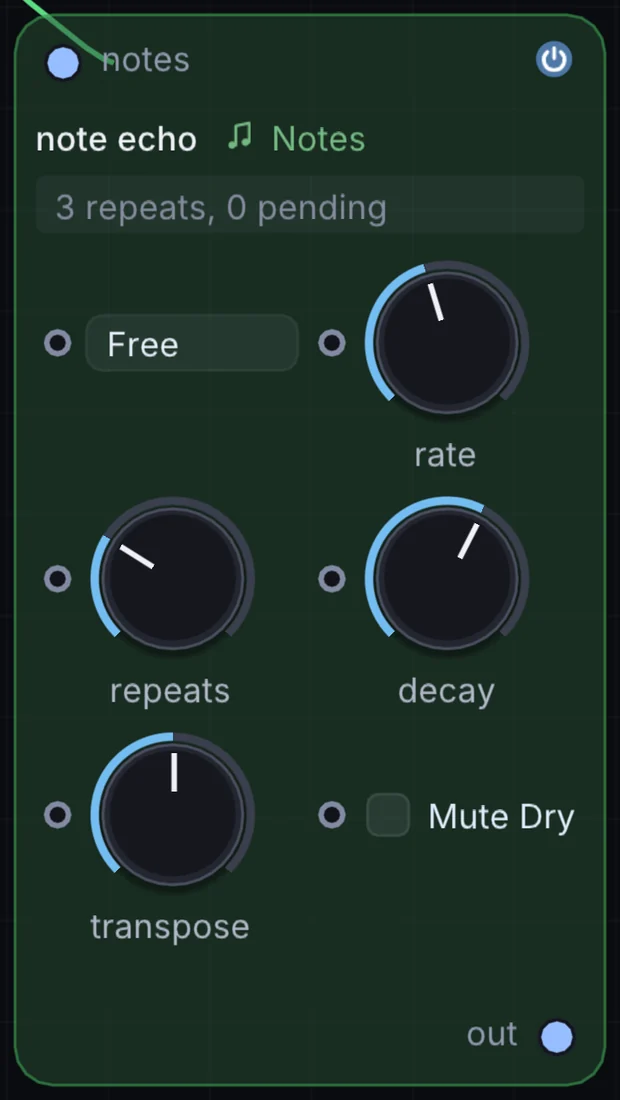

Note Echo
Repeats every incoming note a set number of times, each repeat spaced further apart, getting quieter and optionally shifting in pitch. The original note always plays first unchanged.
What it does
Note Echo is a note node: it makes, filters or changes notes before a synth plays them. It takes notes in and gives notes out.
Try it
Use a short delay with a +12 semitone shift per repeat to turn single notes into an ascending octave echo trail.
Inputs and outputs
Inputs
- notes notes
Outputs
- notes out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| sync | Synced, Free | 1 |
| rate | 0.02 to 2 | 0.150000006 |
| repeats | 1 to 8 | 3 |
| decay | 0 to 100 | 60 |
| transpose | -12 to 12 | 0 |
| Mute Dry | on or off | off |
Example patch
This patch wires Note Echo to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Note Echo: a starting patch for the Note Echo node
node 1 Notes Note Echo
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Synths Analog
id voice
pos 1080 300
end
node 4 Utility Audio Out
id speakers
pos 1640 300
end
note node 0 in0
note voice 0 node
aud speakers 0 voice
