Audio effects node

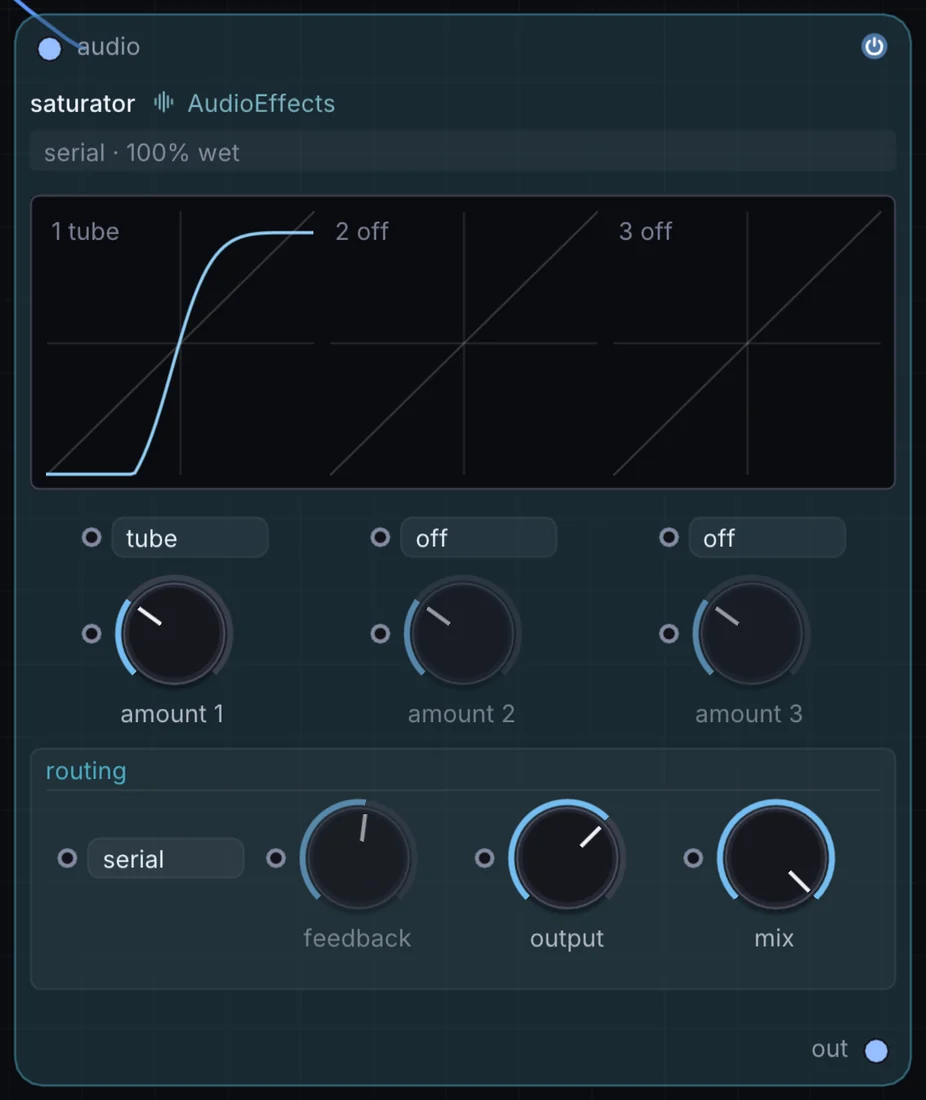

Saturator
Three saturation stages, each with its own curve (tube, tape, diode, fold, rectify, crush) and amount. Routing wires them serial, parallel, mid-side, 3-band or feedback. It runs at 8x with anti-aliased curves and ships with 8 presets.
What it does
Saturator is an audio effect: it changes the sound that flows through it. It takes audio in and gives audio out.
Try it
Use 3-band routing: gentle tape on the lows, fold on the highs.
Inputs and outputs
Inputs
- audio audio
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| mix | 0 to 1 | 1 |
| amount 1 | 0 to 1 | 0.300000012 |
| amount 2 | 0 to 1 | 0.300000012 |
| amount 3 | 0 to 1 | 0.300000012 |
| feedback | 0 to 0.95 | 0.5 |
| output | -24 to 12 | 0 |
Example patch
This patch wires Saturator to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Saturator: a starting patch for the Saturator node
node 1 AudioEffects Saturator
id node
pos 520 300
end
node 2 Synths Oscillator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
aud node 0 in0
aud speakers 0 node
