Synths node
Analog

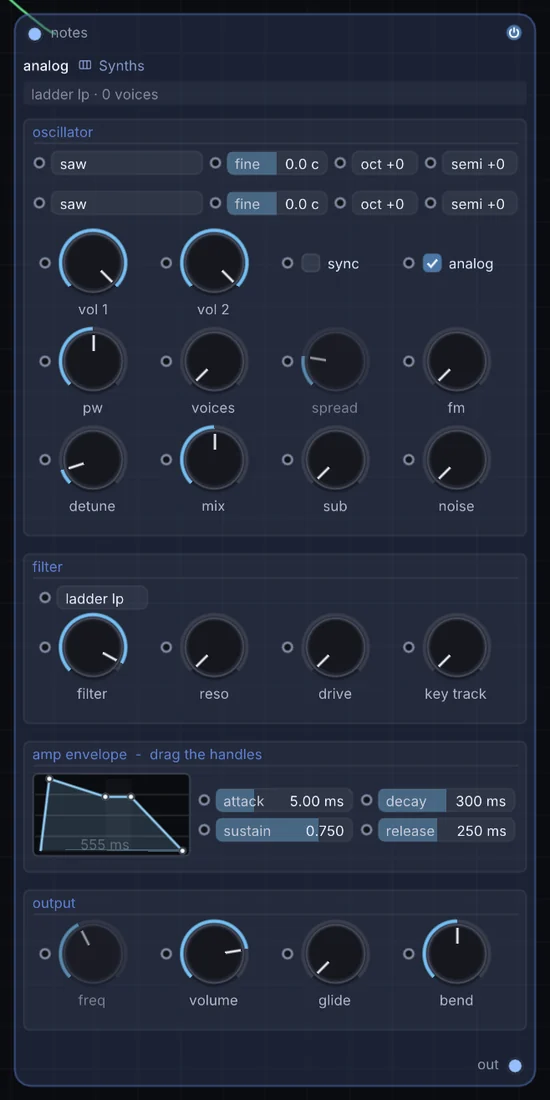

A polyphonic virtual-analog voice: two oscillators (the first a unison stack), a sub oscillator, noise, a drive stage, a nonlinear filter (Moog ladder, MS-20, diode ladder or SVF) and an amplitude envelope across up to 8 voices. Narrow-band oscillators and a 4x drive and filter keep aliasing under -80 dB, and default patches are in tune.
What it does
Analog is a synth: it turns notes into sound. It takes notes in and gives audio out.
Try it
Stack three detuned voices, open the MS-20 filter and sweep the cutoff with an envelope.
Inputs and outputs
Inputs
- notes notes
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| volume | 0 to 1 | 0.800000012 |
| freq | 20 to 8000 | 220 |
| glide | 0 to 2 | 0 |
| bend | -2 to 2 | 0 |
| fine | -50 to 50 | 0 |
| fine | -50 to 50 | 0 |
| pw | 0.01 to 0.99 | 0.5 |
| vol 1 | 0 to 1 | 1 |
| vol 2 | 0 to 1 | 1 |
| voices | 1 to 7 | 1 |
| spread | 0 to 1 | 0.200000003 |
| fm | 0 to 1 | 0 |
| detune | 0 to 100 | 10 |
| mix | 0 to 1 | 0.5 |
| sub | 0 to 1 | 0 |
| noise | 0 to 1 | 0 |
| filter | 20 to 18000 | 12000 |
| reso | 0 to 1 | 0 |
| drive | 0 to 1 | 0 |
| key track | 0 to 1 | 0 |
| attack | 0 to 4000 | 5 |
| decay | 0 to 4000 | 300 |
| sustain | 0 to 1 | 0.75 |
| release | 0 to 4000 | 250 |
Example patch
This patch wires Analog to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Analog: a starting patch for the Analog node
node 1 Synths Analog
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
note node 0 in0
aud speakers 0 node
