Effects node

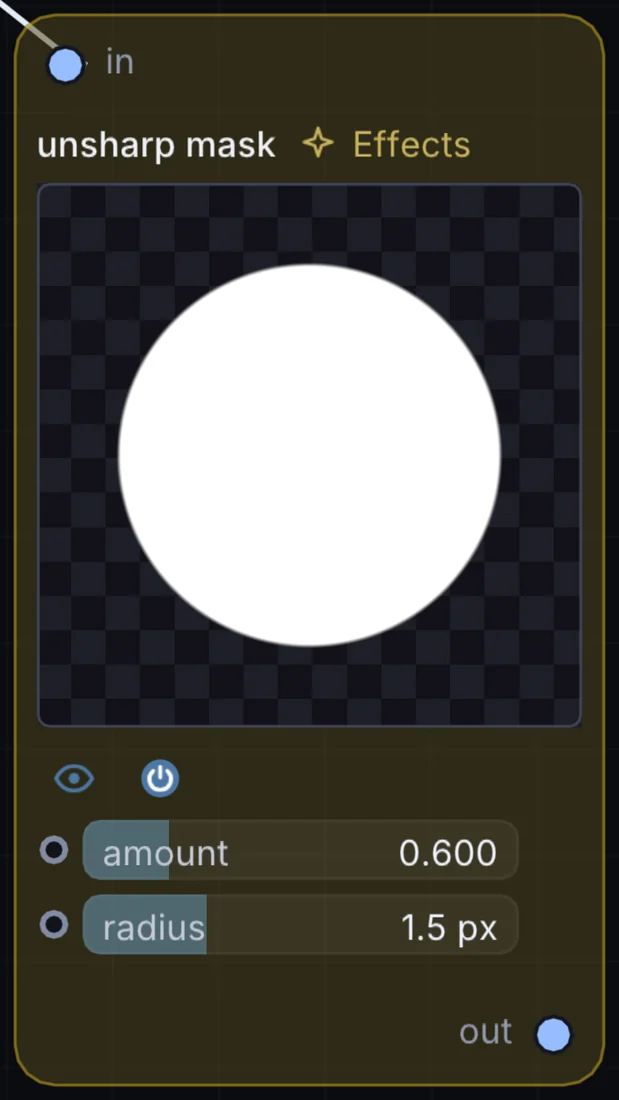

Unsharp Mask
Sharpens the image by comparing it to a blurred version of itself and boosting the difference, controlled by Amount and Radius.
What it does
Unsharp Mask is an image effect: it changes the picture that flows through it. It takes picture in and gives picture out.
Inputs and outputs
Inputs
- picture input
Outputs
- picture out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| amount | 0 to 3 | 0.600000024 |
| radius | 0.1 to 5 | 1.5 |
Example patch
This patch wires Unsharp Mask to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Unsharp Mask: a starting patch for the Unsharp Mask node
node 1 Effects unsharpmask
id node
pos 520 300
end
node 2 Source Ramp
id in0
pos 0 300
end
node 3 Utility Output
id out
pos 1080 300
end
cable node 0 in0
cable out 0 node
