Audio effects node

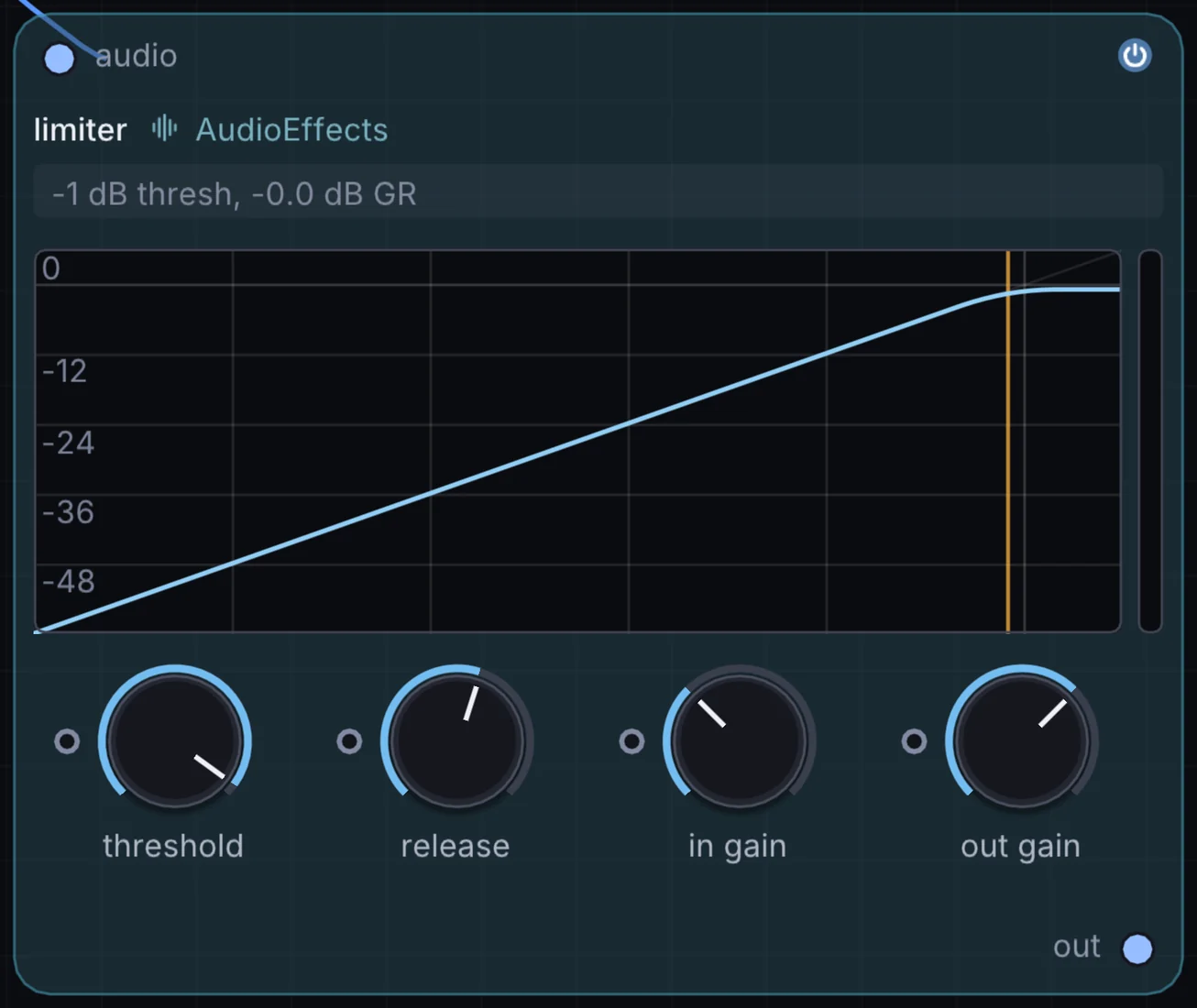

Limiter
A brick-wall ceiling that catches anything above the Threshold and prevents it from getting louder, with In/Out Gain to drive it harder or make up level.
What it does
Limiter is an audio effect: it changes the sound that flows through it. It takes audio in and gives audio out.
Inputs and outputs
Inputs
- audio audio
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| threshold | -30 to 0 | -1 |
| release | 5 to 1000 | 100 |
| in gain | -12 to 24 | 0 |
| out gain | -24 to 12 | 0 |
Example patch
This patch wires Limiter to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Limiter: a starting patch for the Limiter node
node 1 AudioEffects Limiter
id node
pos 520 300
end
node 2 Synths Oscillator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
aud node 0 in0
aud speakers 0 node
