Effects node

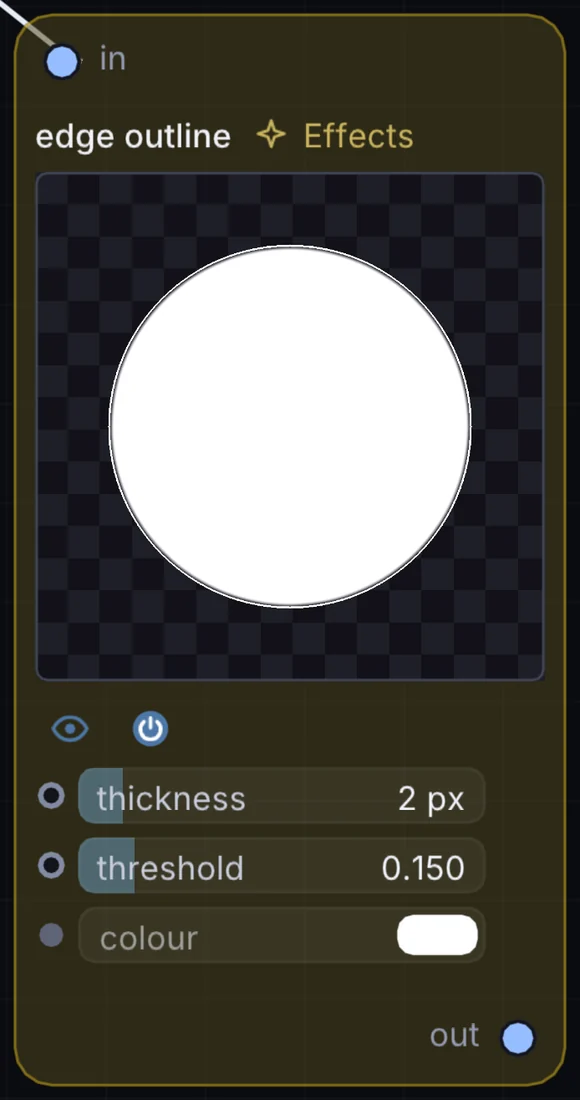

Edge Outline
Finds edges from the brightness gradient and draws them as flat-colour outlines over the original picture. Thickness and Threshold control how bold and how many.
What it does
Edge Outline is an image effect: it changes the picture that flows through it. It takes picture in and gives picture out.
Try it
Give a video a hand-inked comic look by adding a black outline over it.
Inputs and outputs
Inputs
- picture input
Outputs
- picture out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| thickness | 1 to 10 | 2 |
| threshold | 0.01 to 1 | 0.150000006 |
Example patch
This patch wires Edge Outline to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Edge Outline: a starting patch for the Edge Outline node
node 1 Effects edge outline
id node
pos 520 300
end
node 2 Source Ramp
id in0
pos 0 300
end
node 3 Utility Output
id out
pos 1080 300
end
cable node 0 in0
cable out 0 node
