Effects node

Halftone

Recreates the image using a grid of dots sized by brightness (like a newspaper print), with Scale controlling dot density.

Download the patch Read it in the Field Guide

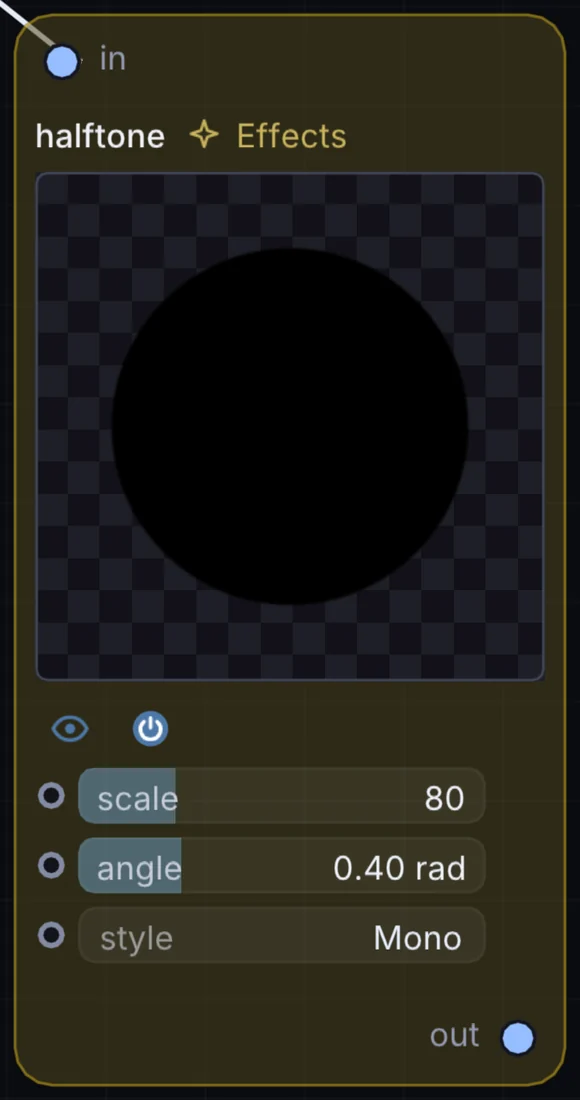

The Halftone node in Infinite, showing its inputs, controls and outputs.

What it does

Halftone is an image effect: it changes the picture that flows through it. It takes picture in and gives picture out.

Inputs and outputs

Inputs

picture input

Outputs

picture out

Controls

Every control with a range can be driven by a modulator, a note, an audio level or a sketch.

Control	Range or options	Default
scale	10 to 300	80
angle	0 to 1.571	0.400000006

Example patch

This patch wires Halftone to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.

infinite-patch 1
rev 2
# Halftone: a starting patch for the Halftone node
node 1 Effects halftone
  id node
  pos 520 300
end
node 2 Source Ramp
  id in0
  pos 0 300
end
node 3 Utility Output
  id out
  pos 1080 300
end
cable node 0 in0
cable out 0 node
