Notes node
Gate

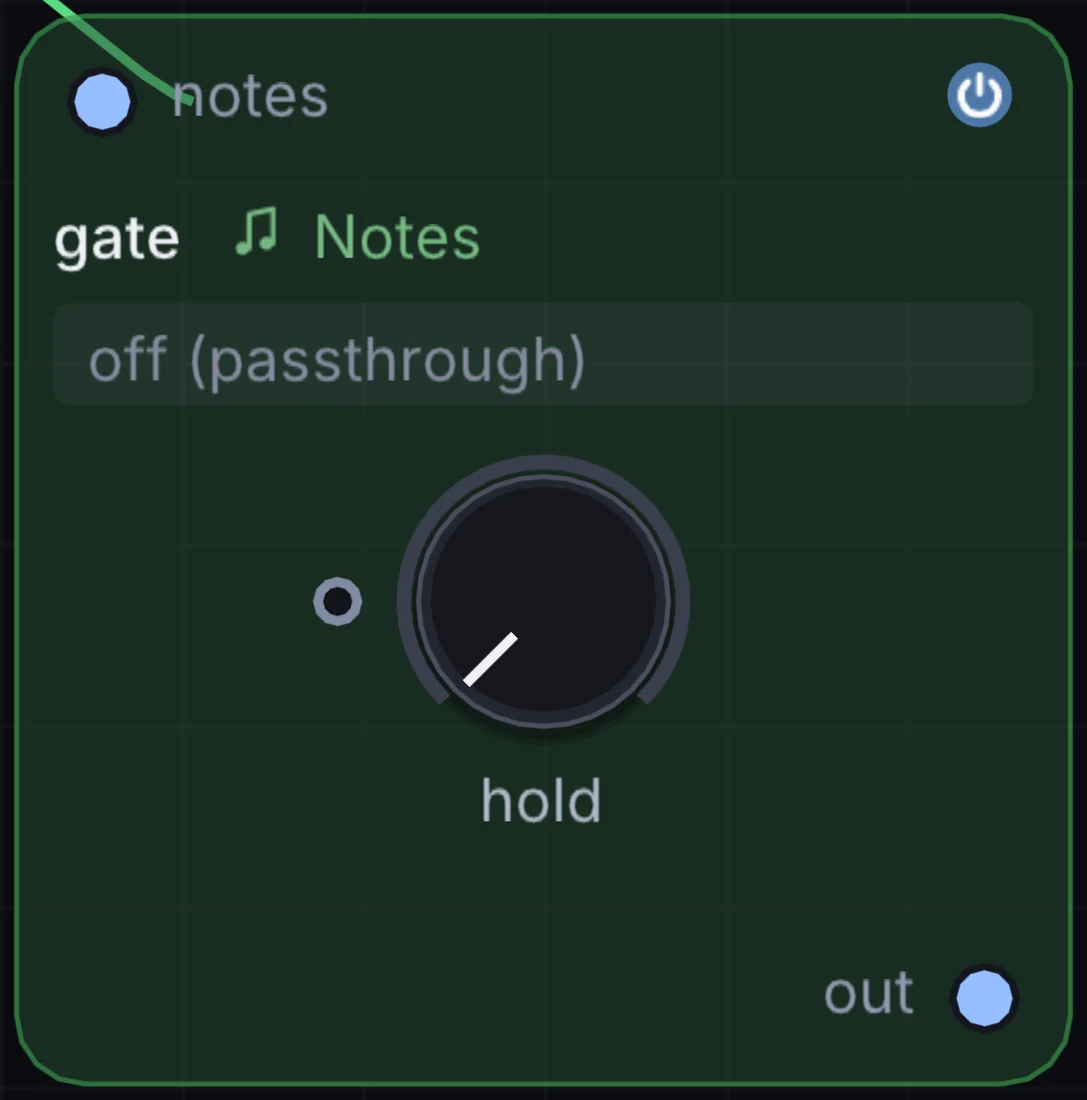

Controls how long each note rings out with a single hold-time knob. At 0 it's a passthrough; above 0 it ignores the real note-off and schedules its own fixed duration for every note.
What it does
Gate is a note node: it makes, filters or changes notes before a synth plays them. It takes notes in and gives notes out.
Try it
Set a short fixed hold time to turn held chords into a clean, staccato pattern.
Inputs and outputs
Inputs
- notes notes
Outputs
- notes out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| hold | 0 to 3000 | 0 |
Example patch
This patch wires Gate to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Gate: a starting patch for the Gate node
node 1 Notes Gate
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Synths Analog
id voice
pos 1080 300
end
node 4 Utility Audio Out
id speakers
pos 1640 300
end
note node 0 in0
note voice 0 node
aud speakers 0 voice
