Notes node
Quantizer
Snaps each note-on forward in time to the nearest grid line, never earlier than when the note actually arrived, at a chosen musical division.
What it does
Quantizer is a note node: it makes, filters or changes notes before a synth plays them. It takes notes in and gives notes out.
Try it
Use a coarse quantize division to lock loose, off-grid playing onto the beat without losing the original note order.
MIDI NotesQuantizerArpeggiator

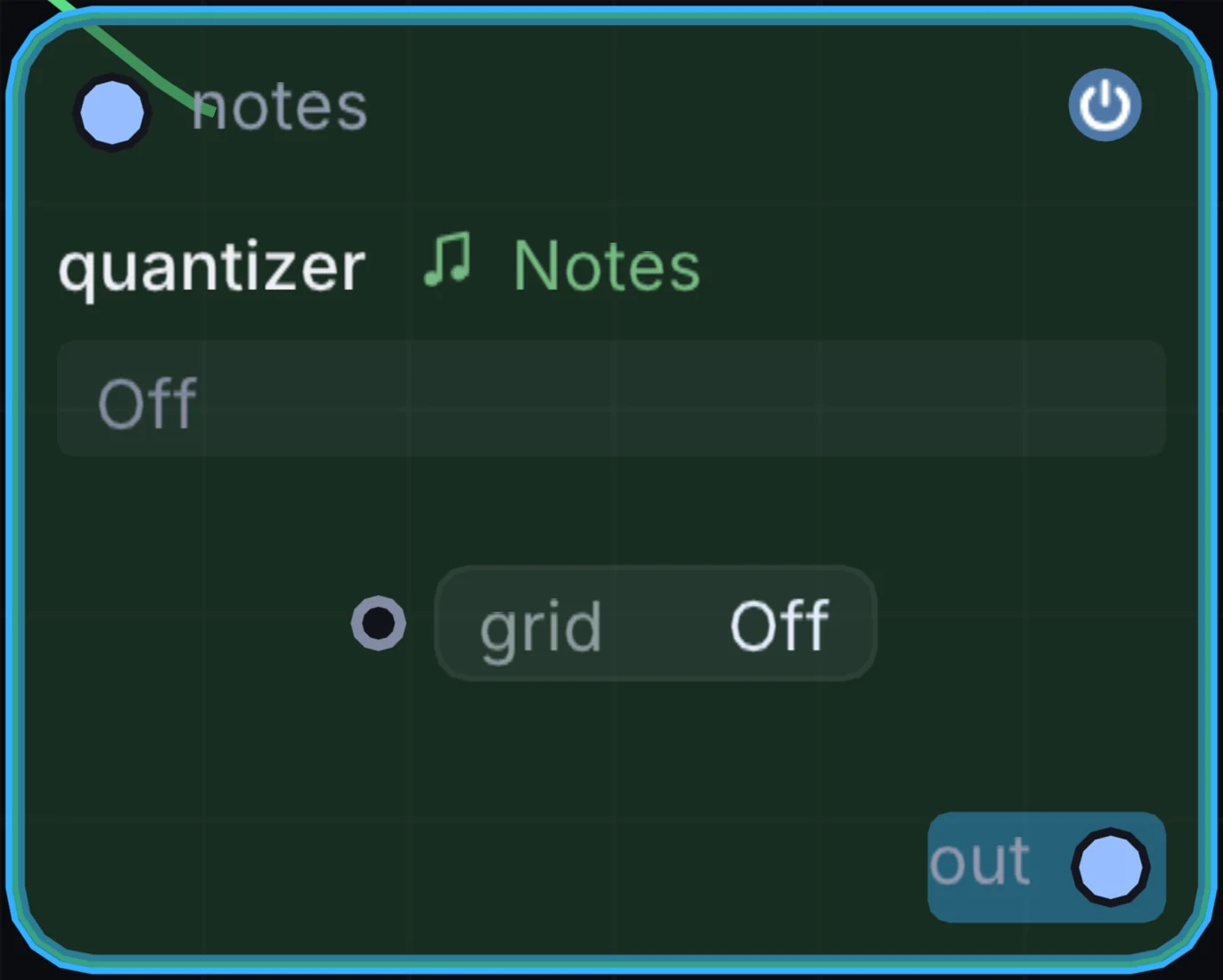

Inputs and outputs
Inputs
- notes notes
Outputs
- notes out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| grid | Off, 4 bars, 2 bars, 1 bar, 1/2, 1/2., 1/2T, 1/4 … | 0 |
Example patch
This patch wires Quantizer to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Quantizer: a starting patch for the Quantizer node
node 1 Notes Quantizer
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Synths Analog
id voice
pos 1080 300
end
node 4 Utility Audio Out
id speakers
pos 1640 300
end
note node 0 in0
note voice 0 node
aud speakers 0 voice
