Modulators node

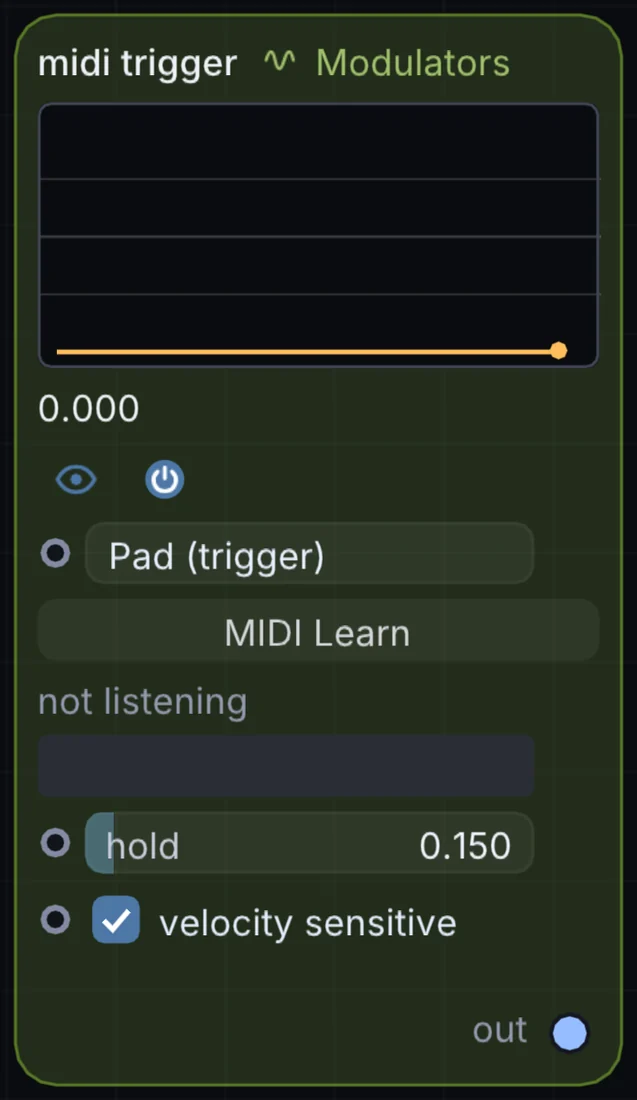

MIDI Trigger
Turns a MIDI pad hit into a decaying envelope pulse (Pad mode, bound to one note), or reports whichever note was last played on the channel (Keyboard mode).
What it does
MIDI Trigger is a modulator: it makes a moving value that can drive any control on the canvas. It has no input and gives control signal out, so it starts a chain.
Try it
Trigger a camera-shake or flash burst every time you hit a specific pad.
MIDI Trigger (Pad)Shape Opacity Flash
Inputs and outputs
Inputs
- None. It starts a chain.
Outputs
- control signal out
Example patch
This patch wires MIDI Trigger to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# MIDI Trigger: a starting patch for the MIDI Trigger node
node 1 Modulators MIDI Trigger
id node
pos 520 300
end
node 2 Source Shape
id shape
pos 1080 300
end
node 3 Utility Output
id out
pos 1640 300
end
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
