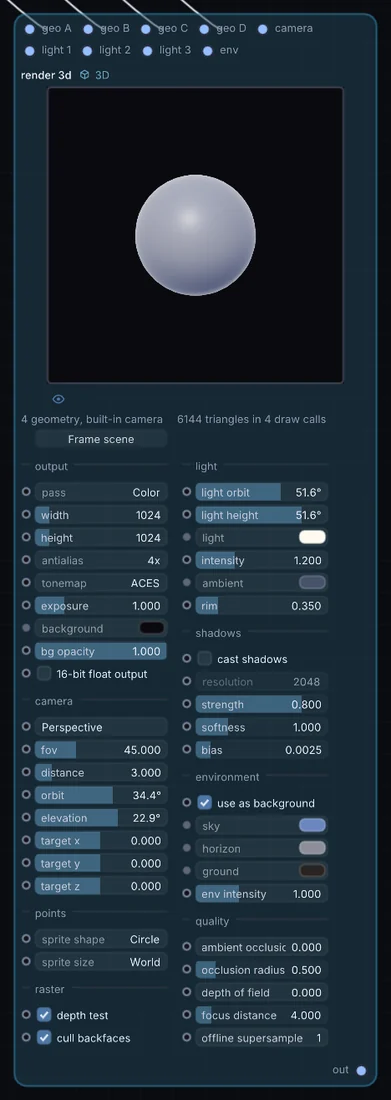

Render 3D node: controls, inputs and a free patch

What it does

Render 3D is a 3D node: it builds, changes or lights geometry that Render 3D turns into a picture. It takes 3D shape, camera, light and environment in and gives picture out.

Try it

Plug in geometry, a material, a light, and an HDRI, then send the result straight into Bloom.

Geometry + Material + Light + HDRIRender 3D Bloom

Inputs and outputs

Inputs

3D shape geo A
3D shape geo B
3D shape geo C
3D shape geo D
camera camera
light light 1
light light 2
light light 3
environment env

Outputs

picture out

Controls

Every control with a range can be driven by a modulator, a note, an audio level or a sketch.

Control	Range or options	Default
ambient occlusion	0 to 1	0
occlusion radius	0.05 to 3	0.5
depth of field	0 to 4	0
focus distance	0.3 to 30	4
16-bit float output	on or off	off
offline supersample	1 to 64	1
width	64 to 8192	1024
height	64 to 8192	1024
pass	Color, Depth (Linear), Depth (Raw Z), Normals, Position	0
projection	Perspective, Orthographic	0
fov	10 to 120	45
distance	0.3 to 20	3
orbit	-180 to 180	34.3774986
elevation	-85.944 to 85.944	22.9183006
target x	-3 to 3	0
target y	-3 to 3	0
target z	-3 to 3	0
light orbit	-180 to 180	51.5662003
light height	-85.944 to 85.944	51.5662003
intensity	0 to 4	1.20000005
rim	0 to 2	0.349999994
env intensity	0 to 3	1
use as background	on or off	on
bg opacity	0 to 1	1

Example patch

This patch wires Render 3D to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.

infinite-patch 1
rev 2
# Render 3D: a starting patch for the Render 3D node
node 1 3D Render 3D
  id node
  pos 520 300
end
node 2 3D Cube
  id in0
  pos 0 220
end
node 3 3D Cube
  id in1
  pos 0 510
end
node 4 3D Cube
  id in2
  pos 0 800
end
node 5 3D Cube
  id in3
  pos 0 1090
end
node 6 Utility Output
  id out
  pos 1080 300
end
geo node 0 in0
geo node 1 in1
geo node 2 in2
geo node 3 in3
cable out 0 node
