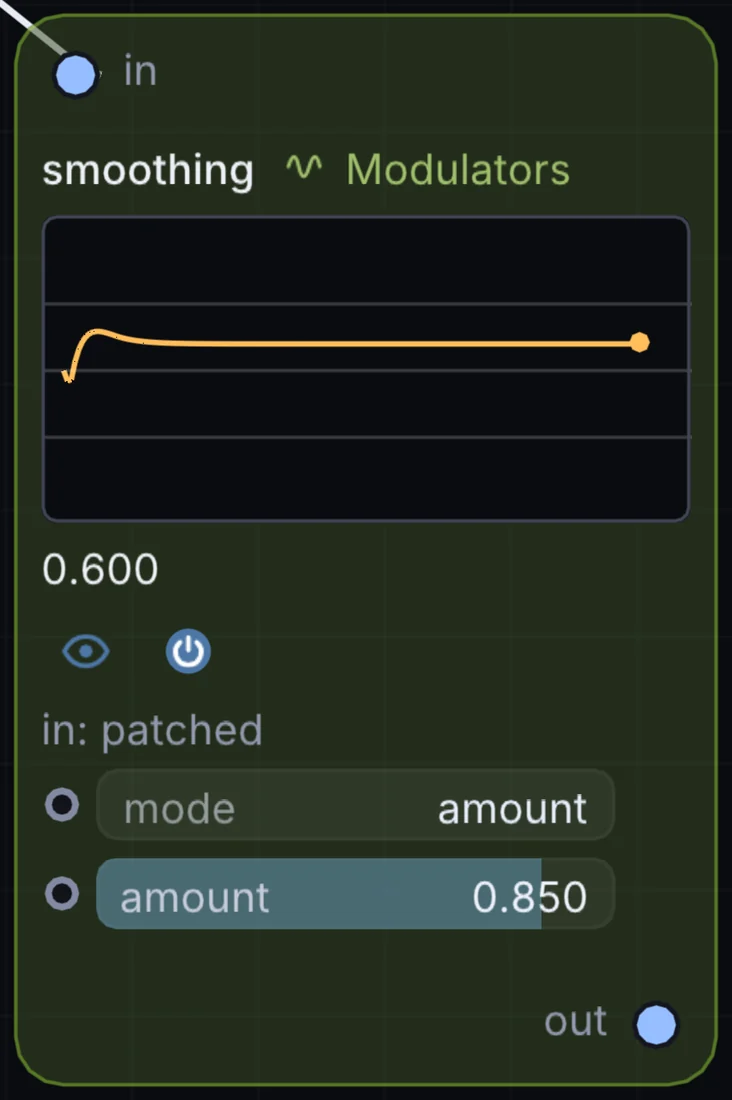

Modulators node
Smoothing
Runs an exponential moving average over an input modulator, with an amount knob setting the filter strength, taking the edge off a stepped or noisy source.
What it does
Smoothing is a modulator: it makes a moving value that can drive any control on the canvas. It takes control signal in and gives control signal out.
Try it
Smooth a Pattern node's stepped output to turn a staircase into a gentle glide.
Inputs and outputs
Inputs
- control signal in
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| in (no cable) | 0 to 1 | 0.5 |
| amount | 0 to 0.99 | 0.850000024 |
| mode | amount, time, spring | 0 |
Example patch
This patch wires Smoothing to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Smoothing: a starting patch for the Smoothing node
node 1 Modulators Smoothing
id node
pos 520 300
end
node 2 Modulators LFO
id lfo0
pos 0 300
end
node 3 Source Shape
id shape
pos 1080 300
end
node 4 Utility Output
id out
pos 1640 300
end
mod node constantIn lfo0 0 0 1 0.5
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
