Modulators node

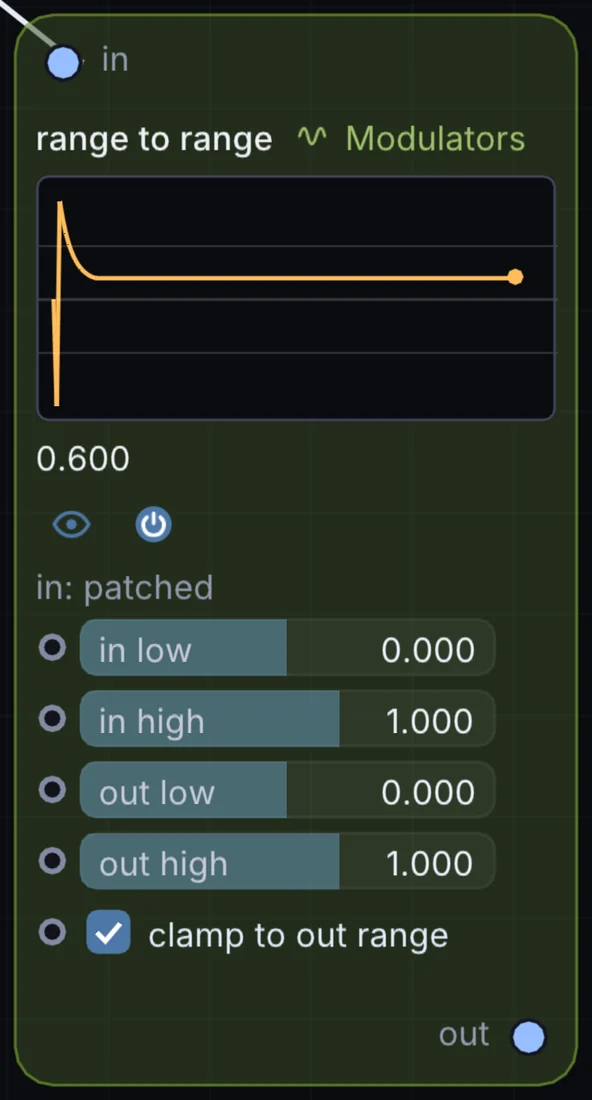

Range to Range
Linearly remaps an input modulator from one span to a different output span, with an option to clamp the result inside the output bounds.
What it does
Range to Range is a modulator: it makes a moving value that can drive any control on the canvas. It takes control signal in and gives control signal out.
Try it
Remap an LFO's 0..1 swing down to a narrow 0.3..0.7 band for a subtler wobble.
Inputs and outputs
Inputs
- control signal in
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| in (no cable) | 0 to 1 | 0.5 |
| in low | -4 to 4 | 0 |
| in high | -4 to 4 | 1 |
| out low | -4 to 4 | 0 |
| out high | -4 to 4 | 1 |
| clamp to out range | on or off | on |
Example patch
This patch wires Range to Range to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Range to Range: a starting patch for the Range to Range node
node 1 Modulators Range to Range
id node
pos 520 300
end
node 2 Modulators LFO
id lfo0
pos 0 300
end
node 3 Source Shape
id shape
pos 1080 300
end
node 4 Utility Output
id out
pos 1640 300
end
mod node constantIn lfo0 0 0 1 0.5
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
