Modulators node

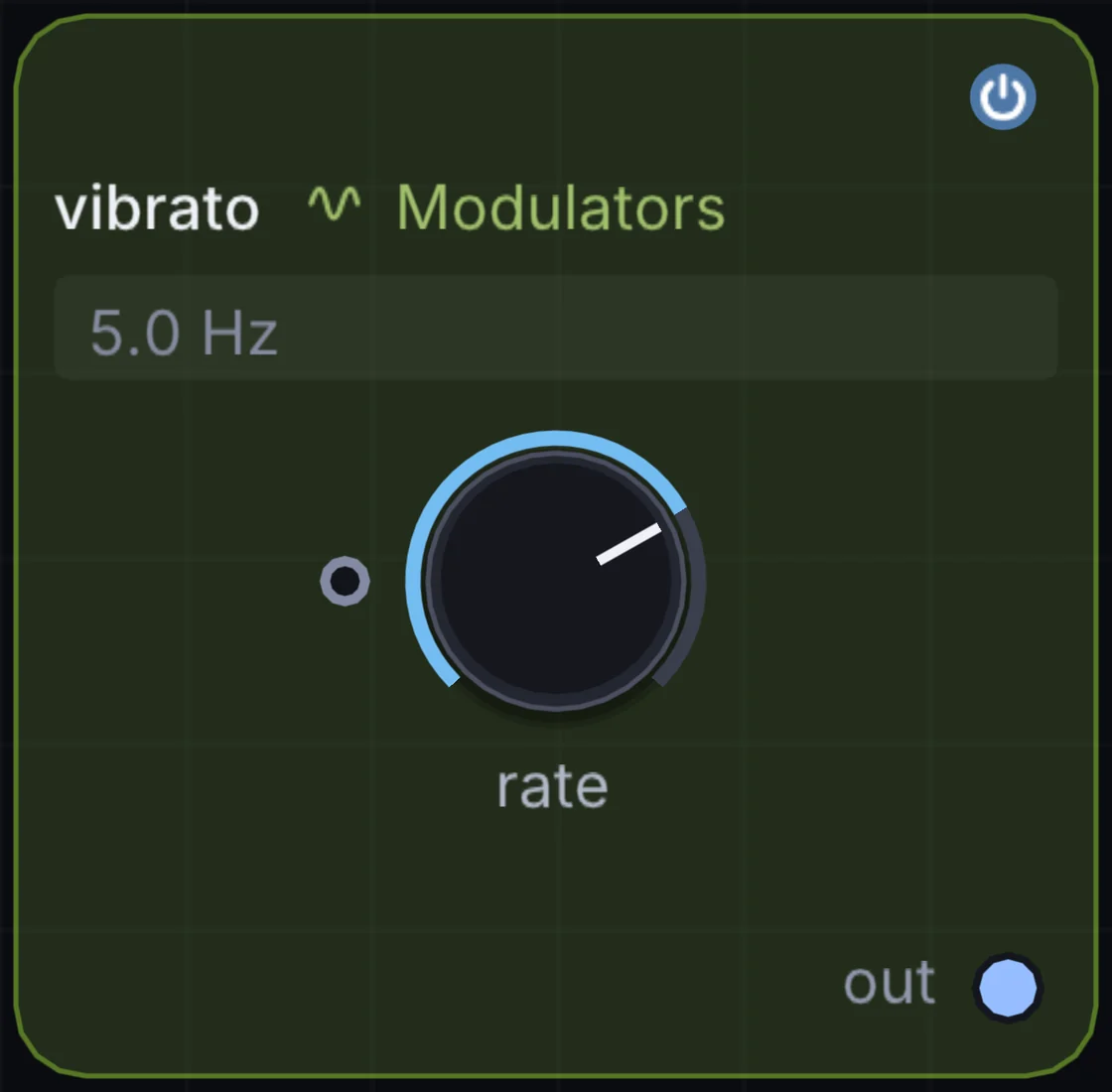

Vibrato
A simple free-running sine LFO with one control — rate in Hz — meant as a substitute for true per-note vibrato, since note events have no continuous pitch channel of their own.
What it does
Vibrato is a modulator: it makes a moving value that can drive any control on the canvas. It has no input and gives control signal out, so it starts a chain.
Try it
Patch it into an oscillator's fine-tune modulation input for a subtle, continuous pitch wobble.
VibratoOscillator Fine-Tune
Inputs and outputs
Inputs
- None. It starts a chain.
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| rate | 0.5 to 12 | 5 |
Example patch
This patch wires Vibrato to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Vibrato: a starting patch for the Vibrato node
node 1 Modulators Vibrato
id node
pos 520 300
end
node 2 Source Shape
id shape
pos 1080 300
end
node 3 Utility Output
id out
pos 1640 300
end
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
