Modulators node

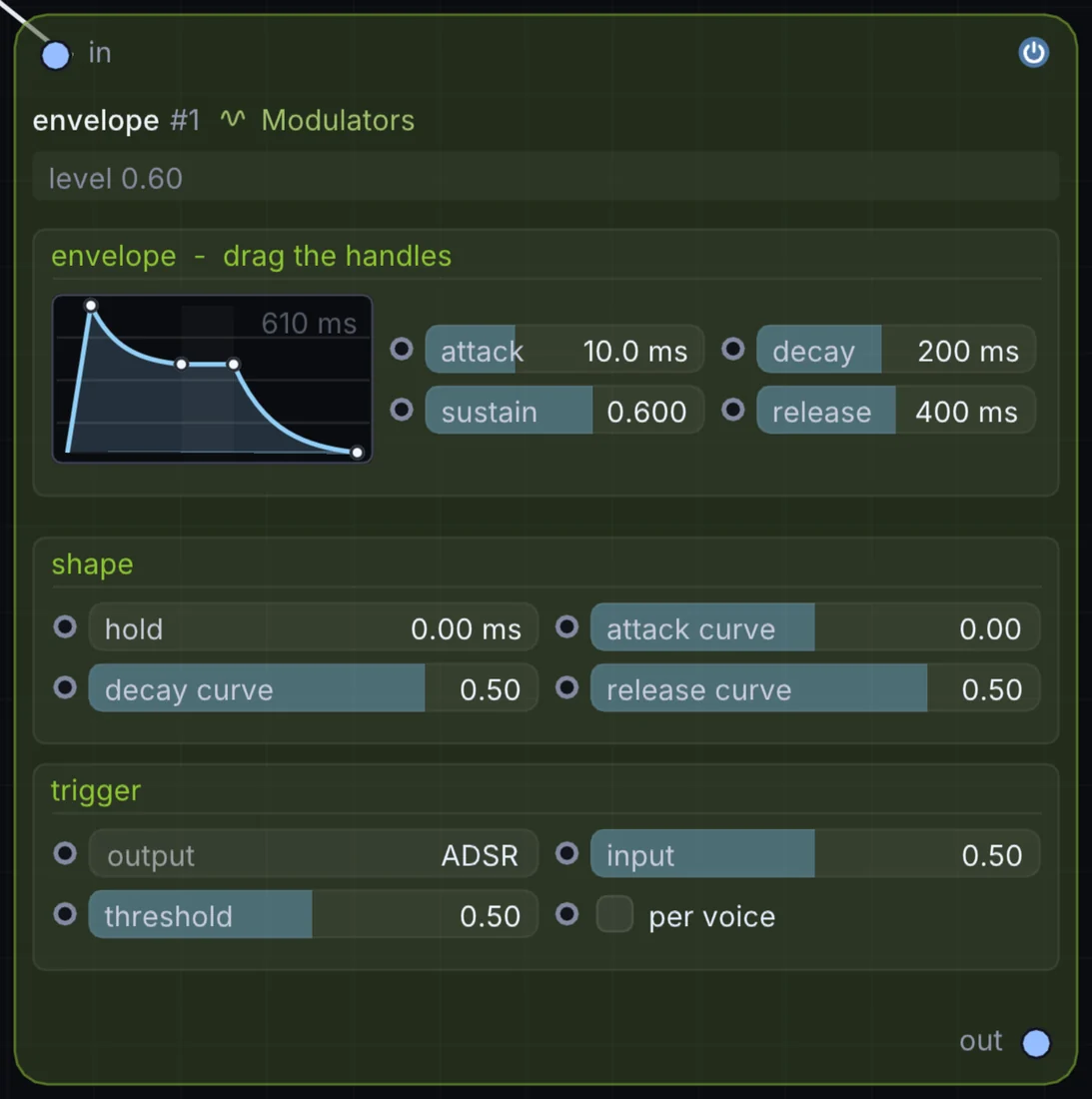

Envelope
Applies a classic ADSR contour to a continuous modulation signal rather than a note trigger — the "gate" is derived from the input crossing a threshold rather than a note-on/off.
What it does
Envelope is a modulator: it makes a moving value that can drive any control on the canvas. It takes control signal in and gives control signal out.
Try it
Feed a slow LFO in to get a rhythmic swell-and-release pulse instead of a raw sine wave.
Inputs and outputs
Inputs
- control signal in
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| attack | 0 to 4000 | 10 |
| decay | 0 to 4000 | 200 |
| sustain | 0 to 1 | 0.600000024 |
| release | 0 to 4000 | 400 |
| input | 0 to 1 | 0.5 |
| threshold | 0 to 1 | 0.5 |
| output | centred, ADSR | 1 |
| hold | 0 to 4000 | 0 |
| attack curve | -1 to 1 | 0 |
| decay curve | -1 to 1 | 0.5 |
| release curve | -1 to 1 | 0.5 |
| per voice | on or off | off |
Example patch
This patch wires Envelope to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Envelope: a starting patch for the Envelope node
node 1 Modulators Envelope
id node
pos 520 300
end
node 2 Modulators LFO
id lfo0
pos 0 300
end
node 3 Source Shape
id shape
pos 1080 300
end
node 4 Utility Output
id out
pos 1640 300
end
mod node attackMs lfo0 0 0 1 0.5
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
