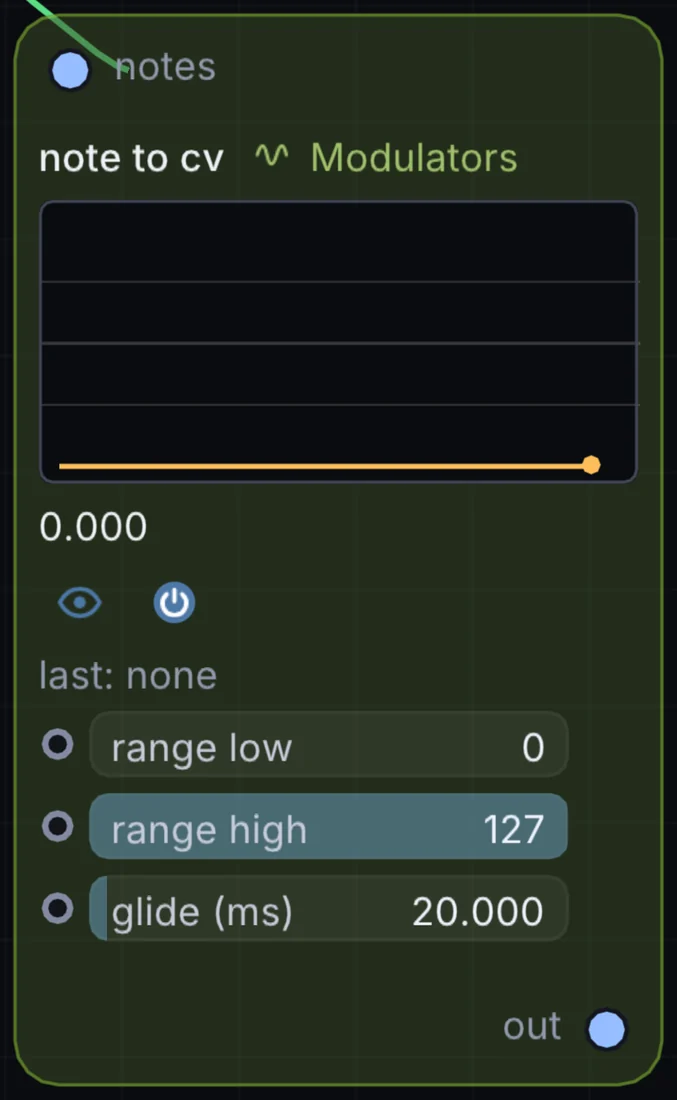

Modulators node
Note to CV
Converts an incoming note stream's pitch into a normalized control voltage, holding the last played note's pitch rather than falling back to zero on release — a pitch tracker, not a gate.
What it does
Note to CV is a modulator: it makes a moving value that can drive any control on the canvas. It takes notes in and gives control signal out.
Try it
Track incoming melody pitch and use it to modulate a filter cutoff so higher notes open the filter.
MIDI NotesNote to CVFilter Cutoff Mod
Inputs and outputs
Inputs
- notes notes
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| range low | 0 to 126 | 0 |
| range high | 1 to 127 | 127 |
| glide (ms) | 0 to 500 | 20 |
Example patch
This patch wires Note to CV to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Note to CV: a starting patch for the Note to CV node
node 1 Modulators Note to CV
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Source Shape
id shape
pos 1080 300
end
node 4 Utility Output
id out
pos 1640 300
end
note node 0 in0
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
