Modulators node
Velocity to CV
Turns the velocity of incoming notes into a 0 to 1 modulator, with an adjustable velocity range. Hit harder and the value goes higher.
What it does
Velocity to CV is a modulator: it makes a moving value that can drive any control on the canvas. It takes notes in and gives control signal out.
Try it
Let note velocity control the Bloom amount, so loud notes flare.
MIDI NotesVelocity to CVBloom (Amount)

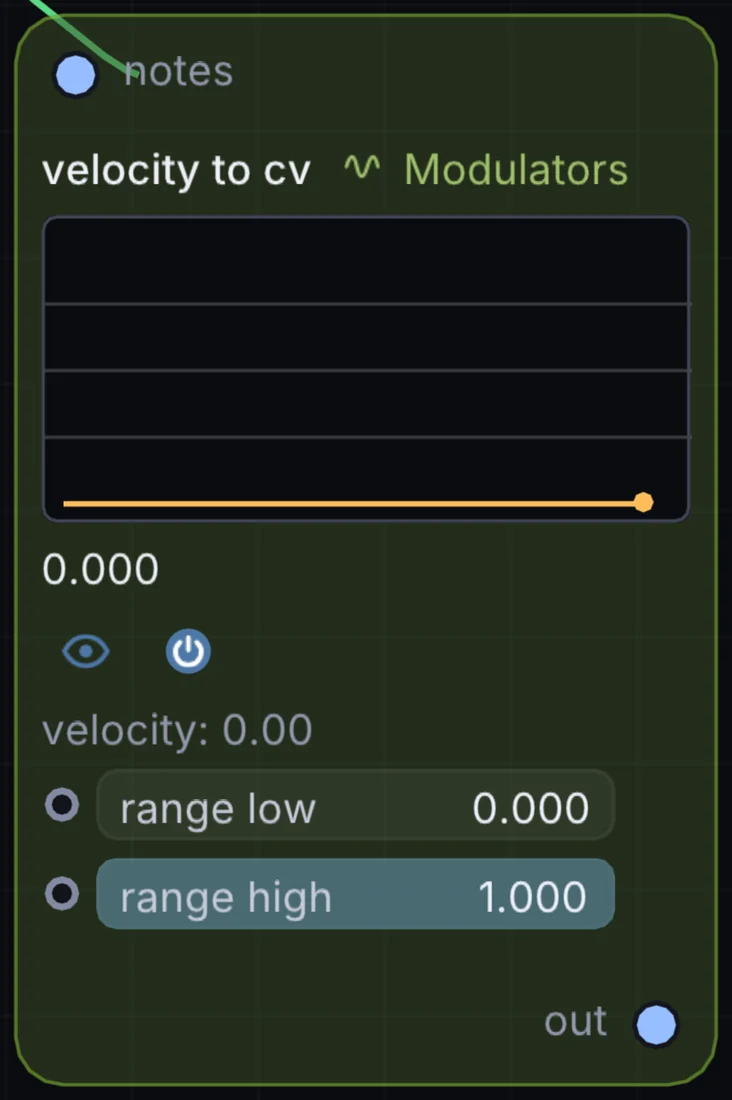

Inputs and outputs
Inputs
- notes notes
Outputs
- control signal out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| range low | 0 to 1 | 0 |
| range high | 0 to 1 | 1 |
Example patch
This patch wires Velocity to CV to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Velocity to CV: a starting patch for the Velocity to CV node
node 1 Modulators Velocity to CV
id node
pos 520 300
end
node 2 Notes Random Note Generator
id in0
pos 0 300
end
node 3 Source Shape
id shape
pos 1080 300
end
node 4 Utility Output
id out
pos 1640 300
end
note node 0 in0
mod shape sizeX node 0 0 0.6 0.5
cable out 0 shape
