Field Modifier

Runs your kernel once per vertex of an incoming mesh, letting you rewrite position, normal, color, or any custom attribute with plain math instead of picking from a fixed deformer list. Leave the geometry input empty and it generates its own points instead, acting as a source.

What it does

Field Modifier is a 3D node: it builds, changes or lights geometry that Render 3D turns into a picture. It takes 3D shape in and gives 3D shape out.

Try it

Write P.y += bass to turn any mesh into a shape that visibly pulses with the low end.

Geometry + Audio Analyze (Bass)Field Modifier Render 3D

Inputs and outputs

Inputs

3D shape geo

Outputs

3D shape out

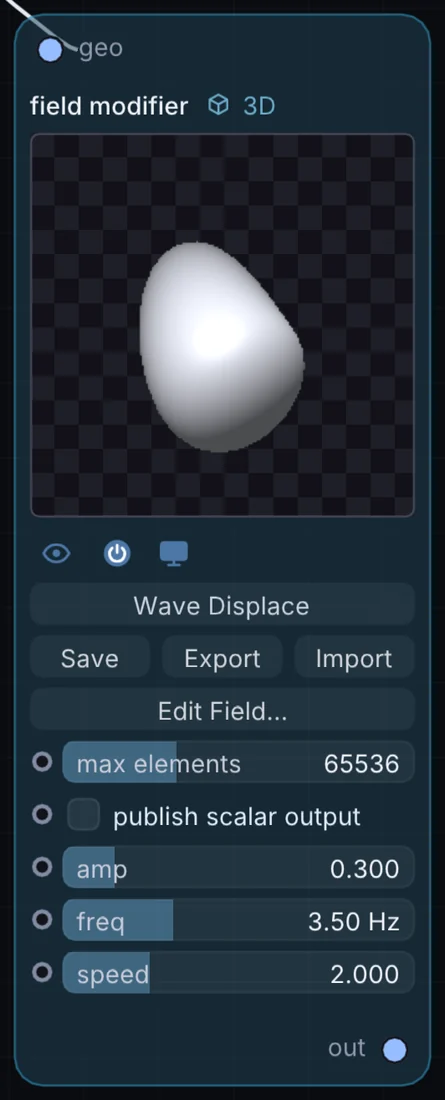

Controls

Every control with a range can be driven by a modulator, a note, an audio level or a sketch.

Control	Range or options	Default
max elements	100 to 200000	65536
generate count	1 to 100000	64
publish scalar output	on or off	off
amp	0 to 2	0.300000012
freq	0.5 to 10	3.5
speed	0 to 8	2

Example patch

This patch wires Field Modifier to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.

infinite-patch 1
rev 2
# Field Modifier: a starting patch for the Field Modifier node
node 1 3D Field Modifier
  id node
  pos 520 300
end
node 2 3D Cube
  id in0
  pos 0 300
end
node 3 3D Render 3D
  id view
  pos 1080 300
end
node 4 Utility Output
  id out
  pos 1640 300
end
geo node 0 in0
geo view 0 node
cable out 0 view
