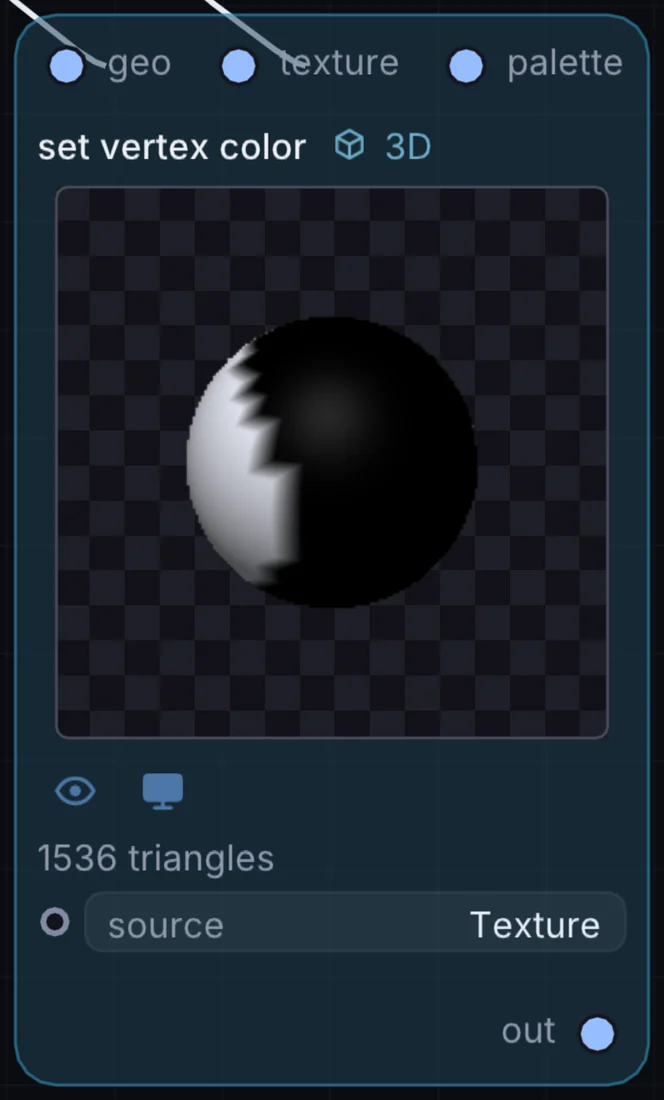

Set Vertex Color

Writes colour onto each element: vertex colour on a mesh, or per-particle colour on a point cloud, whichever the input carries. Source picks where the colour comes from: one flat colour, a two-colour ramp, random per element, a texture sampled at each element's UV, or the swatches of a Palette node. Render 3D reads it without being told.

What it does

Set Vertex Color is a 3D node: it builds, changes or lights geometry that Render 3D turns into a picture. It takes 3D shape, picture and colour palette in and gives 3D shape out.

Try it

Colour a scatter of points from a Palette so every point picks one swatch.

Mesh to Points Set Vertex Color (Palette)Render 3D

Inputs and outputs

Inputs

3D shape geo
picture texture
colour palette palette

Outputs

3D shape out

Controls

Every control with a range can be driven by a modulator, a note, an audio level or a sketch.

Control	Range or options	Default
source	Flat, Position, Normal, Index, Random, Palette, Texture	0

Example patch

This patch wires Set Vertex Color to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.

infinite-patch 1
rev 2
# Set Vertex Color: a starting patch for the Set Vertex Color node
node 1 3D Set Vertex Color
  id node
  pos 520 300
end
node 2 3D Cube
  id in0
  pos 0 220
end
node 3 Source Ramp
  id in1
  pos 0 510
end
node 4 3D Render 3D
  id view
  pos 1080 300
end
node 5 Utility Output
  id out
  pos 1640 300
end
geo node 0 in0
cable node 1 in1
geo view 0 node
cable out 0 view
