Utility node
Gain

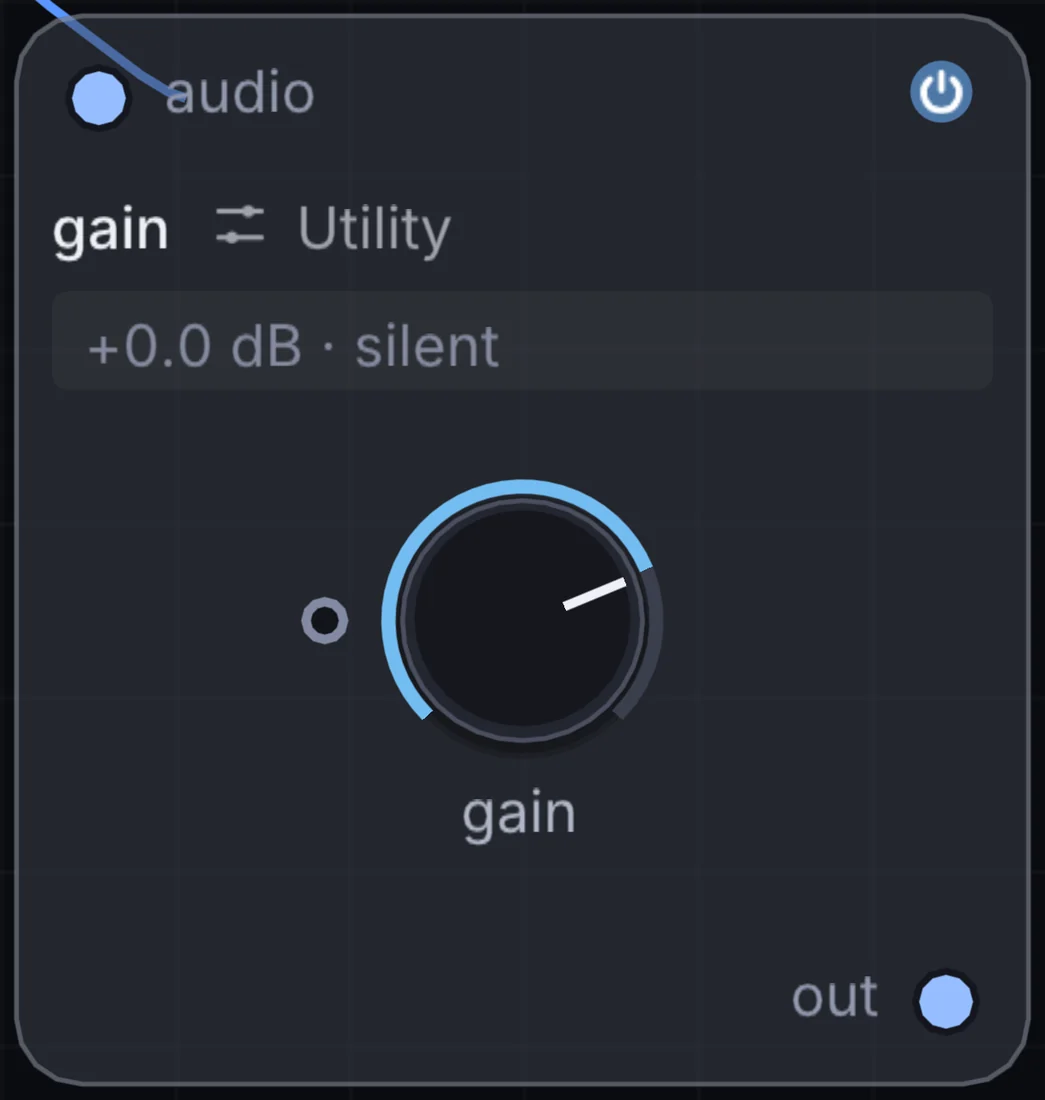

A simple audio level control: one dB knob raises or lowers the volume of the signal running through it, with an inline meter showing the output level.
What it does
Gain is a utility node: it routes signals in and out of Infinite or sets up the canvas. It takes audio in and gives audio out.
Try it
Turn a hot oscillator or sampler down a few dB before it hits a Mixer so it doesn't clip.
Inputs and outputs
Inputs
- audio audio
Outputs
- audio out
Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| gain | -60 to 12 | 0 |
Example patch
This patch wires Gain to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Gain: a starting patch for the Gain node
node 1 Utility Gain
id node
pos 520 300
end
node 2 Synths Oscillator
id in0
pos 0 300
end
node 3 Utility Audio Out
id speakers
pos 1080 300
end
aud node 0 in0
aud speakers 0 node
