Source node
Slideshow
Steps through a folder of images on a beat interval, with an optional crossfade between them. Point it at a folder and it becomes a self-running photo reel locked to the tempo.
What it does
Slideshow is a source node: it makes a picture from nothing, so it sits at the start of a visual chain. It has no input and gives picture out, so it starts a chain.
Try it
Set the interval to one bar and turn the crossfade up for a slow, dreamy gallery.
Inputs and outputs
Inputs
- None. It starts a chain.
Outputs
- picture out

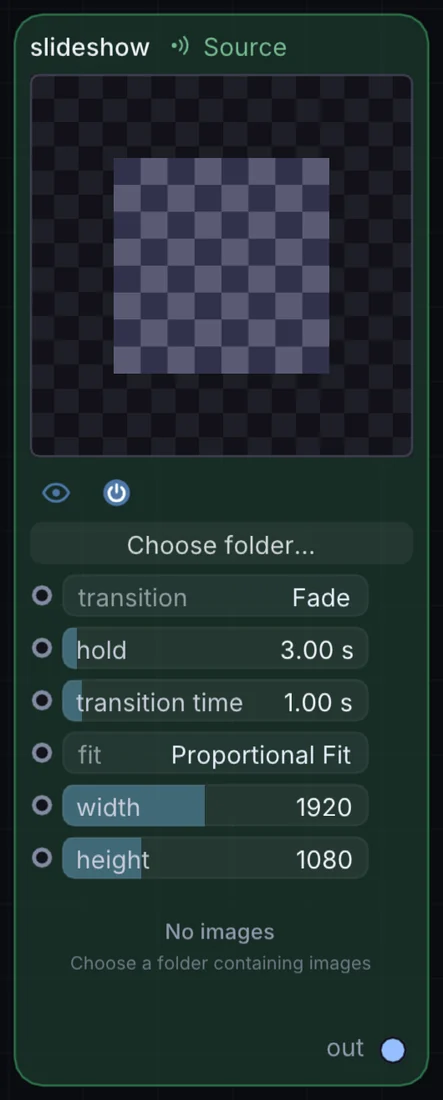

Controls
Every control with a range can be driven by a modulator, a note, an audio level or a sketch.
| Control | Range or options | Default |
|---|---|---|
| hold | 0.05 to 60 | 3 |
| transition time | 0 to 15 | 1 |
| transition | Fade, Slide Left, Slide Right, Wipe Left, Wipe Right, Zoom Fade | 0 |
| fit | Native Size, Best Fit, Proportional Fit | 2 |
| width | 16 to 4096 | 1920 |
| height | 16 to 4096 | 1080 |
Example patch
This patch wires Slideshow to what it needs and shows the result. Download it, then use File, Open in Infinite, or read it here: it is plain text.
infinite-patch 1
rev 2
# Slideshow: a starting patch for the Slideshow node
node 1 Source Slideshow
id node
pos 520 300
end
node 2 Utility Output
id out
pos 1080 300
end
cable out 0 node
